Samsung Galaxy S10 Plus Radiation Levels


Samsung Galaxy S10 Plus SAR Level Summary: View Thermal Visualization
The cellular transmission SAR values for the Samsung Galaxy S10 Plus (FCC ID A3LSMG975U) are 0.41 W/kg (watts per kilogram) at the head and 1.04 W/kg when worn on the body. and 1.29 W/kg when used as a hotspot simultaneously with other transmitters active.


Samsung Galaxy S10 Plus - SAR Levels

FCC SAR Levels

  • FCC Approval Date This is the date the phone SAR test was completed before the phone's release to the public as required by law.
    01 February 2019
  • FCC ID The FCC ID is the code used to register a device for FCC compliance
    A3LSMG975U
  • FCC Report Link A direct link to the FCC's website for confirming SAR levels that are listed on our website - We did the homework for you!
  • US SAR Ratings USA Legal Limit is 1.6 W/kg
    USA Legal Limit is 1.6 W/kg - FCC SAR testing is measured in watts per kilogram (or W/kg) averaged over ONE gram of simulated biological tissue.
  • Head SAR Level SAR test when held against your head when only using cellular service. Wifi and other transmitter are NOT active
    0.41 W/kg
  • Body SAR Level SAR test when held against your body only using cellular service. Wifi and other transmitter are NOT active
    1.04 W/kg
  • Simultaneous Transmission The highest possible SAR recorded with ALL transmitters active, Cellular, WiFi, and Hotspot
    1.59 W/kg
  • Hotspot SAR The highest possible SAR test when held against your BODY using the phone as a hotspot with cellular and WiFi transmitters active,
    1.29 W/kg

SAR Verizon Model

EU SAR Level

  • EU SAR Ratings
    European Legal Limit is 2.0 W/kg - EU SAR testing is measured in watts per kilogram (or W/kg) averaged over TEN grams of simulated biological tissue.
  • Head SAR Level
    N/A
  • Body SAR Level
    N/A

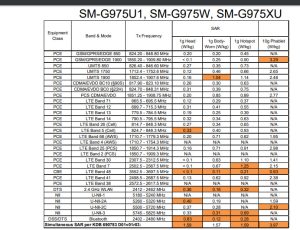

samsung-galaxy-s10-plus-sar-levels-fcc-report-samsung-s10-plus-fccid-sm-g975Samsung Galaxy S10 Plus SAR test reports filed with the Federal Communications Commission FCCID A3LSMG975U— the Specific Absorption Rate (SAR) Samsung Galaxy S10 Plus is 0.41 watts per kilogram (w/kg) at your head, and 1.04 W/kg when worn on your body. The Samsung Galaxy S10 Plus hotspot SAR is 1.29 W/kg and its SAR for simultaneous transmission (cellular plus Wi-Fi) is 1.59 W/kg when used as a hotspot simultaneously with other transmitters active.







Network Technology GSM / CDMA / HSPA / EVDO / LTE
2G bands GSM 850 / 900 / 1800 / 1900 – SIM 1 & SIM 2 (dual-SIM model only)
CDMA 800 / 1900 – USA
3G bands HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100 – Global, USA
CDMA2000 1xEV-DO – USA
4G bands LTE band 1(2100), 2(1900), 3(1800), 4(1700/2100), 5(850), 7(2600), 8(900), 12(700), 13(700), 17(700), 18(800), 19(800), 20(800), 25(1900), 26(850), 28(700), 32(1500), 38(2600), 39(1900), 40(2300), 41(2500), 66(1700/2100) – Global
LTE band 1(2100), 2(1900), 3(1800), 4(1700/2100), 5(850), 7(2600), 8(900), 12(700), 13(700), 14(700), 17(700), 18(800), 19(800), 20(800), 25(1900), 26(850), 28(700), 29(700), 30(2300), 38(2600), 39(1900), 40(2300), 41(2500), 46, 66(1700/2100), 71(600) – USA
Speed HSPA 42.2/5.76 Mbps, LTE-A (7CA) Cat20 2000/150 Mbps
GPRS Yes
EDGE Yes
Launch Announced 2019, February
Status Coming soon. Exp. release 2019, March 8
Body Dimensions 157.6 x 74.1 x 7.8 mm (6.20 x 2.92 x 0.31 in)
Weight 175 g / 198 g (ceramic) (6.17 oz)
Build Front glass (Gorilla Glass 6), back glass (Gorilla Glass 5), aluminum frame
Front glass (Gorilla Glass 6), ceramic body
SIM Single SIM (Nano-SIM) or Hybrid Dual SIM (Nano-SIM, dual stand-by)
– Samsung Pay (Visa, MasterCard certified)
– IP68 dust/water proof (up to 1.5m for 30 mins)
Display Type Dynamic AMOLED capacitive touchscreen, 16M colors
Size 6.4 inches, 103.8 cm2 (~88.9% screen-to-body ratio)
Resolution 1440 x 3040 pixels, 19:9 ratio (~522 ppi density)
Protection Corning Gorilla Glass 6
– HDR10+
– Always-on display
Platform OS Android 9.0 (Pie); One UI
Chipset Exynos 9820 Octa (8 nm) – EMEA
Qualcomm SDM855 Snapdragon 855 (7 nm) – USA/LATAM, China
CPU Octa-core (2×2.73 GHz Mongoose M4 & 2×2.31 GHz Cortex-A75 & 4×1.95 GHz Cortex-A55) – EMEA
Octa-core (1×2.84 GHz Kryo 485 & 3×2.41 GHz Kryo 485 & 4×1.78 GHz Kryo 485) – USA/LATAM, China
GPU Mali-G76 MP12 – EMEA
Adreno 640 – USA/LATAM, China
Memory Card slot microSD, up to 512 GB (uses SIM 2 slot) – dual SIM model only
Internal 1 TB, 12 GB RAM, 128/512 GB, 8 GB RAM
Main Camera Triple 12 MP, f/1.5-2.4, 26mm (wide), 1/2.55″, 1.4m, Dual Pixel PDAF, OIS
12 MP, f/2.4, 52mm (telephoto), 1/3.6″, 1.0m, AF, OIS, 2x optical zoom
16 MP, f/2.2, 12mm (ultrawide), 1.0m
Features LED flash, auto-HDR, panorama
Video 2160p@60fps, 1080p@240fps, 720p@960fps, HDR, dual-video rec.
Selfie camera Dual 10 MP, f/1.9, 26mm (wide), 1.22m, Dual Pixel PDAF
8 MP, f/2.2, 22mm (wide), 1.12m, depth sensor
Features Dual video call, Auto-HDR
Video 2160p@30fps, 1080p@30fps
Sound Loudspeaker Yes, with stereo speakers
3.5mm jack Yes
– 32-bit/384kHz audio
– Active noise cancellation with dedicated mic
– Dolby Atmos/AKG sound
Comms WLAN Wi-Fi 802.11 a/b/g/n/ac/ax, dual-band, Wi-Fi Direct, hotspot
Bluetooth 5.0, A2DP, LE, aptX
GPS Yes, with A-GPS, GLONASS, BDS, GALILEO
NFC Yes
Radio FM radio (USA & Canada only)
USB 3.1, Type-C 1.0 reversible connector
Features Sensors Fingerprint (under display), accelerometer, gyro, proximity, compass, barometer, heart rate, SpO2
– ANT+
– Bixby natural language commands and dictation
– Samsung DeX (desktop experience support)
Battery Non-removable Li-Ion 4100 mAh battery
Charging Fast battery charging 15W
Fast wireless charging 15W
Power bank/Reverse wireless charging 9W
Misc Colors Prism White, Prism Black, Prism Green, Prism Blue, Canary Yellow, Flamingo Pink, Ceramic Black, Ceramic White
Price About 1050 EUR
Tests Performance Basemark X: 45017
Camera Photo / Video
Loudspeaker Voice 74dB / Noise 74dB / Ring 93dB
Battery life Endurance rating 91h
