Samsung Galaxy S10 LITE Radiation Levels


Samsung Galaxy S10 Lite SAR Level Summary: View Thermal Visualization

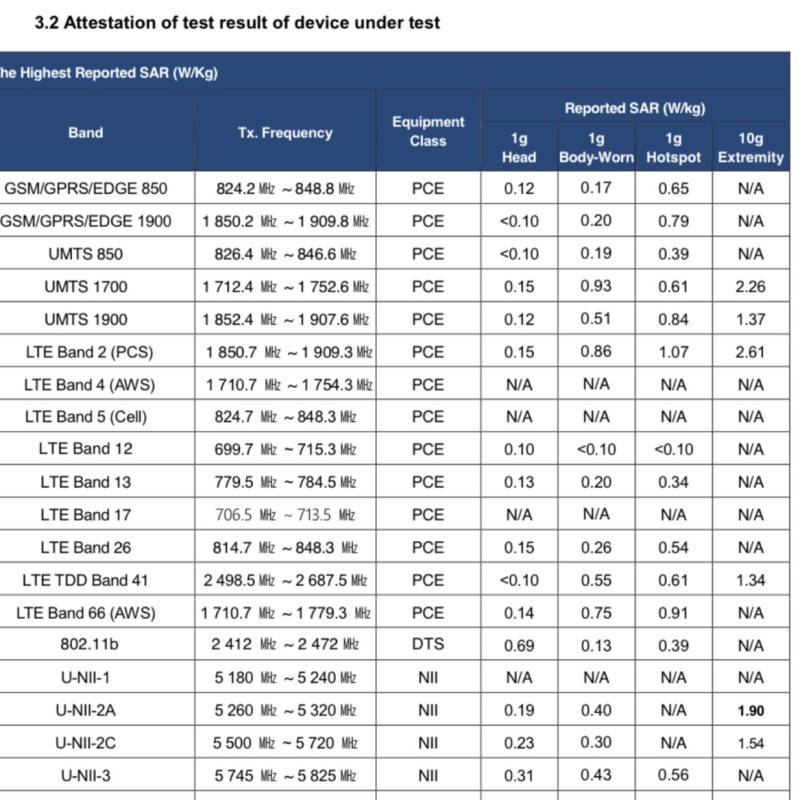

The cellular transmission SAR values for the Samsung Galaxy S10 Lite (FCC ID A3LSMG770F) are 0.69 W/kg (watts per kilogram) at the head and 0.93 W/kg when worn on the body. The hotspot/Airplay SAR level is 1.07 W/kg. The simultaneous transmission SAR values for (cellular plus Wi-Fi) is 1.06 W/kg at the head, 1.36 W/kg when worn on the body, and 1.58 W/kg when used as a hotspot simultaneously with other transmitters active.


Samsung Galaxy S10 LITE - SAR Levels

FCC SAR Levels

  • FCC Approval Date This is the date the phone SAR test was completed before the phone's release to the public as required by law.
    03 February 2023
  • FCC ID The FCC ID is the code used to register a device for FCC compliance
    A3LSMG770F
  • FCC Report Link A direct link to the FCC's website for confirming SAR levels that are listed on our website - We did the homework for you!
  • US SAR Ratings USA Legal Limit is 1.6 W/kg
    USA Legal Limit is 1.6 W/kg - FCC SAR testing is measured in watts per kilogram (or W/kg) averaged over ONE gram of simulated biological tissue.
  • Head SAR Level SAR test when held against your head when only using cellular service. Wifi and other transmitter are NOT active
    0.69 W/kg
  • Body SAR Level SAR test when held against your body only using cellular service. Wifi and other transmitter are NOT active
    0.93 W/kg
  • Product Specific Use SAR test when held against your body only using the phone as a hotspot. Cellular and other transmitter are NOT active
    1.07 W/kg
  • Simultaneous Transmission The highest possible SAR recorded with ALL transmitters active, Cellular, WiFi, and Hotspot
    1.577 W/kg
  • Simultaneous Head The highest possible SAR test when held against your HEAD with cellular and WiFi transmitters active,
    1.064 W/kg
  • Simultaneous Body The highest possible SAR test when held against your BODY with cellular and WiFi transmitters active,
    1.358 W/kg
  • Hotspot SAR The highest possible SAR test when held against your BODY using the phone as a hotspot with cellular and WiFi transmitters active,
    1.577 W/kg

EU SAR Level

  • EU SAR Ratings
    European Legal Limit is 2.0 W/kg - EU SAR testing is measured in watts per kilogram (or W/kg) averaged over TEN grams of simulated biological tissue.
  • Head SAR Level
    0.49 W/kg
  • Body SAR Level
    1.52 W/kg

Versions: SM-G770F/DS (Global); SM-G770F/DSM (Russia, India)

Network Technology GSM / HSPA / LTE
2G bands GSM 850 / 900 / 1800 / 1900 – SIM 1 & SIM 2 (dual-SIM model only)
3G bands HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100
4G bands LTE band 1(2100), 2(1900), 3(1800), 4(1700/2100), 5(850), 7(2600), 8(900), 12(700), 13(700), 17(700), 20(800), 26(850), 28(700), 38(2600), 40(2300), 41(2500), 66(1700/2100)
Speed HSPA 42.2/5.76 Mbps, LTE-A
Launch Announced 2020, January 3
Status Available. Released 2020, February 3
Body Dimensions 162.5 x 75.6 x 8.1 mm (6.40 x 2.98 x 0.32 in)
Weight 186 g (6.56 oz)
SIM Single SIM (Nano-SIM) or Dual SIM (Nano-SIM, dual stand-by)
Display Type Super AMOLED Plus capacitive touchscreen, 16M colors
Size 6.7 inches, 107.8 cm2 (~87.8% screen-to-body ratio)
Resolution 1080 x 2400 pixels, 20:9 ratio (~394 ppi density)
Always-on display
HDR10+
Platform OS Android 10.0; One UI 2
Chipset Qualcomm SM8150 Snapdragon 855 (7 nm)
CPU Octa-core (1×2.84 GHz Kryo 485 & 3×2.42 GHz Kryo 485 & 4×1.78 GHz Kryo 485)
GPU Adreno 640
Memory Card slot microSDXC (uses shared SIM slot)
Internal 128GB 6GB RAM, 128GB 8GB RAM, 512GB 8GB RAM
UFS 2.1
Main Camera Triple 48 MP, f/2.0, 26mm (wide), 1/2.0″, 0.8m, PDAF, Super Steady OIS
12 MP, f/2.2, 12mm (ultrawide)
5 MP, f/2.4, 25mm (macro), 1/5.0″, 1.12m
Features LED flash, panorama, HDR
Video 2160p@30/60fps, 1080p@30/60/240fps; gyro-EIS
Selfie camera Single 32 MP, f/2.2, 25mm (wide), 1/2.8″, 0.8m
Features HDR
Video 1080p@30fps
Sound Loudspeaker Yes
3.5mm jack No
Comms WLAN Wi-Fi 802.11 a/b/g/n/ac, dual-band, Wi-Fi Direct, hotspot
Bluetooth 5.0, A2DP, LE
GPS Yes, with A-GPS, GLONASS, GALILEO, BDS
NFC Yes
USB 2.0, Type-C 1.0 reversible connector
Features Sensors Fingerprint (under display, optical), accelerometer, gyro, proximity, compass
ANT+
Battery Non-removable Li-Po 4500 mAh battery
Charging Fast battery charging 45W
Misc Colors Prism White, Prism Black, Prism Blue
Models SM-G770F, SM-G770F/DS, SM-G770F/DSM
SAR 0.69 W/kg (head)     0.93 W/kg (body)
SAR EU 0.49 W/kg (head)     1.52 W/kg (body)
Price € 600.17 / $ 559.95 / £ 518.08 / ₹ 39,999
Tests Performance AnTuTu: 370751 (v7), 459497 (v8)
GeekBench: 11151 (v4.4), 2732 (v5.1)
GFXBench: 56fps (ES 3.1 onscreen)
Display Contrast ratio: Infinite (nominal)
Camera Photo / Video
Audio quality Noise -93.7dB / Crosstalk -94.7dB
Battery life Endurance rating 110h
