Samsung Galaxy NOTE 20 Radiation Levels
Head SARHead SAR
| Radiation Levels | HEAD (1g) | BODY (1g) | HOTSPOT (1g) |
|---|---|---|---|
| Cellular Only | 0.79 W/kg | 1.14 W/kg | 1.4 W/kg |
| Simultaneous | 1.53 W/kg | 1.46 W/kg | 1.4 W/kg |
Samsung Galaxy NOTE 20 Safety Tip: Turning Off Wi-Fi and Bluetooth Reduces Radiation.
This SAR chart reveals how turning off Wi-Fi and Bluetooth on your Samsung Galaxy NOTE 20 can significantly reduce your exposure to radiation. Our SAR comparison chart shows that by simply turning off these transmitters, you can lower the RF radiation exposure to your head by 48.2%, and you can lower exposure to the body by 22.1%, when considering these differences between cellular-only (Wi-Fi/Bluetooth OFF) and simultaneous use exposure (Wi-Fi/Bluetooth ON), a wise way to reduce excessive phone radiation is to tap off unnecessary transmitters when not in use. Additionally, when using your phone as a hotspot, turning off Bluetooth can reduce your exposure by up to 0% according to the FCC SAR report for device number A3LSMN980F.
Samsung Galaxy NOTE 20 SAR Levels
| RADIATION LEVELS | CELLULAR ONLY | (% DIFF) | SIMULTANEOUS |
|---|---|---|---|
| HEAD | 0.79 W/kg | 48.2% | 1.526 W/kg |
| BODY | 1.14 W/kg | 22.1% | 1.464 W/kg |
| HOTSPOT | 1.40 W/kg | 0% | 1.40 W/kg |
The Specific Absorption Rate (SAR) of a mobile device measures the amount of radio frequency energy absorbed by the body during device usage.
The SAR values for the galaxy-note20 (FCC ID A3LSMN980F) are as follows:
- 0.79 W/kg when held at the head with cellular transmission only
- 1.14 W/kg when worn on the body with cellular transmission only
- 1.4 W/kg when used as a Hotspot or Airplay
- 1.53 W/kg when held at the head with simultaneous cellular and Wi-Fi transmission
- 1.46 W/kg when worn on the body with simultaneous cellular and Wi-Fi transmission
- when used as a Hotspot simultaneously with other transmitters active.
Samsung Galaxy NOTE 20 - SAR Levels

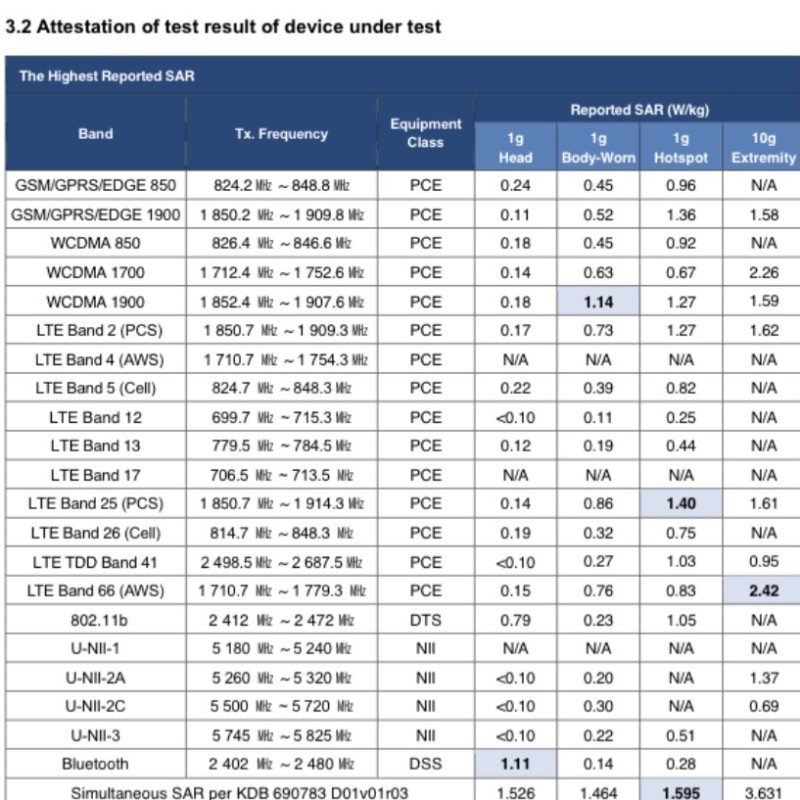

FCC SAR Levels
- FCC Approval Date This is the date the phone SAR test was completed before the phone's release to the public as required by law. 08 July 2020
- FCC ID The FCC ID is the code used to register a device for FCC compliance A3LSMN980F
- FCC Report Link A direct link to the FCC's website for confirming SAR levels that are listed on our website - We did the homework for you!
- US SAR Ratings USA Legal Limit is 1.6 W/kg USA Legal Limit is 1.6 W/kg - FCC SAR testing is measured in watts per kilogram (or W/kg) averaged over ONE gram of simulated biological tissue.
- Head SAR Level SAR test when held against your head when only using cellular service. Wifi and other transmitter are NOT active 0.79 W/kg
- Body SAR Level SAR test when held against your body only using cellular service. Wifi and other transmitter are NOT active 1.14 W/kg
- Product Specific Use SAR test when held against your body only using the phone as a hotspot. Cellular and other transmitter are NOT active 1.40 W/kg
- Simultaneous Transmission The highest possible SAR recorded with ALL transmitters active, Cellular, WiFi, and Hotspot 1.595 W/kg
- Simultaneous Head The highest possible SAR test when held against your HEAD with cellular and WiFi transmitters active, 1.526 W/kg
- Simultaneous Body The highest possible SAR test when held against your BODY with cellular and WiFi transmitters active, 1.464 W/kg
- Hotspot SAR The highest possible SAR test when held against your BODY using the phone as a hotspot with cellular and WiFi transmitters active, 1.40 W/kg
EU SAR Level
- EU SAR Ratings European Legal Limit is 2.0 W/kg - EU SAR testing is measured in watts per kilogram (or W/kg) averaged over TEN grams of simulated biological tissue.
- Head SAR Level 0.36 W/kg
- Body SAR Level 1.37 W/kg
Also available with 5G
| Network | Technology | GSM / CDMA / HSPA / EVDO / LTE |
|---|---|---|
| 2G bands | GSM 850 / 900 / 1800 / 1900 – SIM 1 & SIM 2 (dual-SIM model only) | |
| CDMA 800 / 1900 | ||
| 3G bands | HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100 | |
| CDMA2000 1xEV-DO | ||
| 4G bands | 1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 18, 19, 20, 25, 26, 28, 32, 38, 39, 40, 41, 66 | |
| Speed | HSPA 42.2/5.76 Mbps, LTE-A (7CA) Cat20 2000/200 Mbps |
| Launch | Announced | 2020, August 05 |
|---|---|---|
| Status | Available. Released 2020, August 21 |
| Body | Dimensions | 161.6 x 75.2 x 8.3 mm (6.36 x 2.96 x 0.33 in) |
|---|---|---|
| Weight | 192 g (6.77 oz) | |
| Build | Glass front (Gorilla Glass 5), plastic back | |
| SIM | Single SIM (Nano-SIM and/or eSIM) or Hybrid Dual SIM (Nano-SIM, dual stand-by) | |
| Samsung Pay (Visa, MasterCard certified) IP68 dust/water resistant (up to 1.5m for 30 mins) Stylus, 26ms latency (Bluetooth integration, accelerometer, gyro) |
| Display | Type | Super AMOLED Plus, HDR10+ |
|---|---|---|
| Size | 6.7 inches, 108.4 cm2 (~89.2% screen-to-body ratio) | |
| Resolution | 1080 x 2400 pixels, 20:9 ratio (~393 ppi density) | |
| Protection | Corning Gorilla Glass 5 | |
| Always-on display |
| Platform | OS | Android 10, upgradable to Android 11, One UI 3.0 |
|---|---|---|
| Chipset | Exynos 990 (7 nm+) – Global Qualcomm SM8250 Snapdragon 865+ (7 nm+) – USA | |
| CPU | Octa-core (2×2.73 GHz Mongoose M5 & 2×2.50 GHz Cortex-A76 & 4×2.0 GHz Cortex-A55) – Global Octa-core (1×3.0 GHz Kryo 585 & 3×2.42 GHz Kryo 585 & 4×1.8 GHz Kryo 585) – USA | |
| GPU | Mali-G77 MP11 – Global Adreno 650 – USA |
| Memory | Card slot | No |
|---|---|---|
| Internal | 256GB 8GB RAM | |
| UFS 3.0 |
| Main Camera | Triple | 12 MP, f/1.8, 26mm (wide), 1/1.76″, 1.8m, Dual Pixel PDAF, OIS 64 MP, f/2.0, 27mm (telephoto), 1/1.72″, 0.8m, PDAF, OIS, 3x hybrid zoom 12 MP, f/2.2, 120, 13mm (ultrawide), 1/2.55″, 1.4m |
|---|---|---|
| Features | LED flash, auto-HDR, panorama | |
| Video | 8K@24fps, 4K@30/60fps, 1080p@30/60/240fps, 720p@960fps, HDR10+, stereo sound rec., gyro-EIS & OIS |
| Selfie camera | Single | 10 MP, f/2.2, 26mm (wide), 1/3.2″, 1.22m, Dual Pixel PDAF |
|---|---|---|
| Features | Dual video call, Auto-HDR | |
| Video | 4K@30/60fps, 1080p@30fps |
| Sound | Loudspeaker | Yes, with stereo speakers |
|---|---|---|
| 3.5mm jack | No | |
| 32-bit/384kHz audio Tuned by AKG |
| Comms | WLAN | Wi-Fi 802.11 a/b/g/n/ac/6, dual-band, Wi-Fi Direct, hotspot |
|---|---|---|
| Bluetooth | 5.0, A2DP, LE, aptX | |
| GPS | Yes, with A-GPS, GLONASS, BDS, GALILEO | |
| NFC | Yes | |
| Radio | FM radio (Snapdragon model only; market/operator dependent) | |
| USB | USB Type-C 3.2, USB On-The-Go |
| Features | Sensors | Fingerprint (under display, ultrasonic), accelerometer, gyro, proximity, compass, barometer |
|---|---|---|
| Samsung Wireless DeX (desktop experience support) ANT+ Bixby natural language commands and dictation |
| Battery | Type | Li-Ion 4300 mAh, non-removable |
|---|---|---|
| Charging | Fast charging 25W USB Power Delivery 3.0 Fast Qi/PMA wireless charging 15W Reverse wireless charging 4.5W |
| Misc | Colors | Mystic Green, Mystic Bronze, Mystic Gray, Mystic Red, Mystic Blue |
|---|---|---|
| Models | SM-N980F, SM-N980F/DS | |
| SAR | 1.11 W/kg (head) 1.14 W/kg (body) | |
| SAR EU | 0.36 W/kg (head) 1.37 W/kg (body) | |
| Price | $ 719.00 / € 646.73 / £ 759.00 / ₹ 77,999 |
