Google Pixel 3 Radiation Levels

Head SAR
Head SAR
More Info:
Radiation LevelsHEAD (1g)BODY (1g)HOTSPOT (1g)
Cellular Only1.34 W/kg1.34 W/kg0
Simultaneous001.34 W/kg





View Thermal Visualization




Google Pixel 3 Safety Tip: Turning Off Wi-Fi and Bluetooth Reduces Radiation.

This SAR chart reveals how turning off Wi-Fi and Bluetooth on your Google Pixel 3 can significantly reduce your exposure to radiation. Our SAR comparison chart shows that by simply turning off these transmitters, you can lower the RF radiation exposure to your head by %, and you can lower exposure to the body by %, when considering these differences between cellular-only (Wi-Fi/Bluetooth OFF) and simultaneous use exposure (Wi-Fi/Bluetooth ON), a wise way to reduce excessive phone radiation is to tap off unnecessary transmitters when not in use. Additionally, when using your phone as a hotspot, turning off Bluetooth can reduce your exposure by up to % according to the FCC SAR report for device number A4RG013A.

Google Pixel 3 SAR Levels

Comparison of SAR levels between cellular-only and simultaneous exposure
RADIATION LEVELSCELLULAR ONLY(% DIFF)SIMULTANEOUS
HEAD1.34 W/kg% W/kg
BODY1.34 W/kg% W/kg
HOTSPOT W/kg%1.34 W/kg

The Specific Absorption Rate (SAR) of a mobile device measures the amount of radio frequency energy absorbed by the body during device usage.

The SAR values for the pixel-3 (FCC ID A4RG013A) are as follows:

  • 1.34 W/kg when held at the head with cellular transmission only
  • 1.34 W/kg when worn on the body with cellular transmission only
  • when used as a Hotspot simultaneously with other transmitters active.

Google Pixel 3 - SAR Levels

FCC SAR Levels

  • FCC Approval Date This is the date the phone SAR test was completed before the phone's release to the public as required by law.
    31 August 2018
  • FCC ID The FCC ID is the code used to register a device for FCC compliance
    A4RG013A
  • FCC Report Link A direct link to the FCC's website for confirming SAR levels that are listed on our website - We did the homework for you!
  • US SAR Ratings USA Legal Limit is 1.6 W/kg
    USA Legal Limit is 1.6 W/kg - FCC SAR testing is measured in watts per kilogram (or W/kg) averaged over ONE gram of simulated biological tissue.
  • Head SAR Level SAR test when held against your head when only using cellular service. Wifi and other transmitter are NOT active
    1.34 W/kg
  • Body SAR Level SAR test when held against your body only using cellular service. Wifi and other transmitter are NOT active
    1.34 W/kg
  • Simultaneous Transmission The highest possible SAR recorded with ALL transmitters active, Cellular, WiFi, and Hotspot
    1.59 W/kg
  • Hotspot SAR The highest possible SAR test when held against your BODY using the phone as a hotspot with cellular and WiFi transmitters active,
    1.34 W/kg

EU SAR Level

  • EU SAR Ratings
    European Legal Limit is 2.0 W/kg - EU SAR testing is measured in watts per kilogram (or W/kg) averaged over TEN grams of simulated biological tissue.
  • Head SAR Level
    N/A
  • Body SAR Level
    N/A

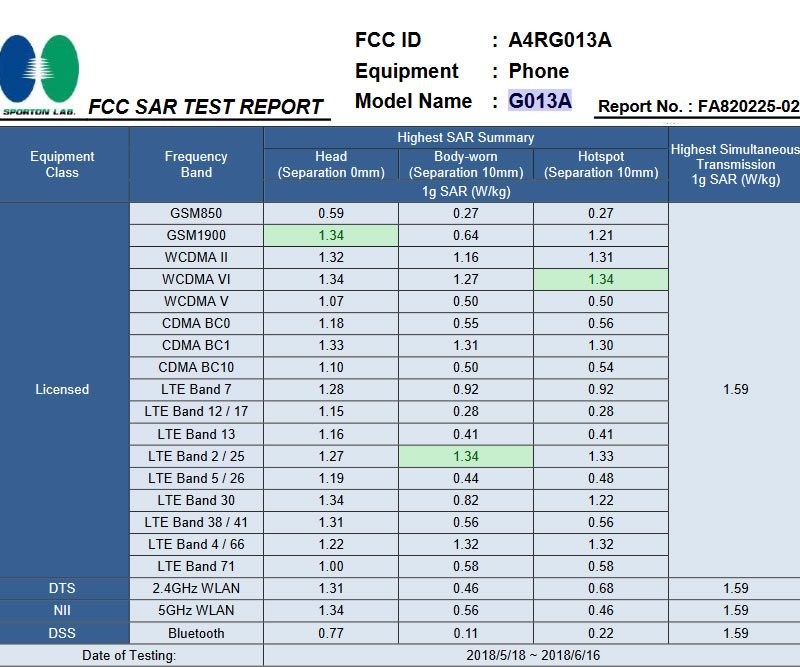

google-pixel-3-sar-levels-for-fccid-A4RG013A

The SAR standard was developed to protect users only from the acute effects of the heat generated by microwave radiation (i.e., the thermal effect). The SAR limit does not protect users from the non-thermal effects of cell phone radiation.

The maximum reported SAR Levels for a Pixel 3 (FCCID A4RG013A) are as follows: Head 1.34 W/kg, Body 1.34 W/kg, Simultaneous Transmission 1.59 W/kg and Wireless Router 1.34 W/kg

According to Google,  the Pixel 3 has been tested and meets applicable limits for radio frequency (RF) exposure.
Specific Absorption Rate (SAR) refers to the rate at which the body absorbs RF energy. The SAR limit is 1.6 watts per kilogram in countries that set the limit averaged over 1 gram of tissue and 2.0 watts per kilogram in countries that set the limit averaged over 10 grams of tissue. During testing, the Pixel phones are set to their highest transmission levels and placed in positions that simulate use against the head, with no separation, and near the body, with 10mm separation.

To reduce exposure to RF energy, use a hands-free option, such as the built-in speakerphone, the supplied headphones, or other similar accessories. Carry the Pixel 3 at least 10mm away from your body to ensure exposure levels remain at or below the as-tested levels. Cases with metal parts may change the RF performance of the device, including its compliance with RF exposure guidelines, in a manner that has not been tested or certified.

Although this device has been tested to determine SAR in each band of operation, not all bands are available in all areas. Bands are dependent on your service provider’s wireless and roaming networks.





Network Technology GSM / CDMA / HSPA / EVDO / LTE
2G bands GSM 850 / 900 / 1800 / 1900
CDMA 800 / 1900
3G bands HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100
CDMA2000 1xEV-DO
4G bands LTE band 1(2100), 2(1900), 3(1800), 4(1700/2100), 5(850), 7(2600), 8(900), 12(700), 13(700), 17(700), 18(800), 19(800), 20(800), 25(1900), 26(850), 28(700), 29(700), 32(1500), 38(2600), 40(2300), 41(2500), 66(1700/2100), 71(600)
Speed HSPA 42.2/5.76 Mbps, LTE-A (5CA) Cat16 1024/75 Mbps
GPRS Yes
EDGE Yes
Launch Announced 2018, October
Status Coming soon. Exp. release 2018, October
Body Dimensions 145.6 x 68.2 x 7.9 mm (5.73 x 2.69 x 0.31 in)
Weight 148 g (5.22 oz)
Build Front/back glass (Gorilla Glass 5), aluminum frame
SIM Nano-SIM card & eSIM
– IP68 dust/water resistant (up to 1.5m for 30 mins)
Display Type P-OLED capacitive touchscreen, 16M colors
Size 5.5 inches, 76.7 cm2 (~77.2% screen-to-body ratio)
Resolution 1080 x 2160 pixels, 18:9 ratio (~443 ppi density)
Multitouch Yes
Protection Corning Gorilla Glass 5
– Always-on display
– 100% DCI-P3 coverage
– HDR
Platform OS Android 9.0 (Pie)
Chipset Qualcomm SDM845 Snapdragon 845 (10 nm)
CPU Octa-core (4×2.5 GHz Kryo 385 Gold & 4×1.6 GHz Kryo 385 Silver)
GPU Adreno 630
Memory Card slot No
Internal 64/128 GB, 4 GB RAM
Main Camera Single 12.2 MP, f/1.8, 28mm (wide), 1/2.55″, 1.4m, OIS, dual pixel PDAF
Features Dual-LED flash, Auto-HDR, panorama
Video 2160p@30fps, 1080p@30/60/120fps, 720p@240fps, 1080p@30fps (gyro-EIS)
Selfie camera Dual 8 MP, f/1.8, 28mm (wide), PDAF
8 MP, f/2.2, 19mm (ultrawide), no AF
Features Auto-HDR
Video 1080p@30fps
Sound Alert types Vibration; MP3, WAV ringtones
Loudspeaker Yes, with stereo speakers
3.5mm jack No
– Active noise cancellation with dedicated mic
– Type-C to 3.5 mm headphone jack adapter
Comms WLAN Wi-Fi 802.11 a/b/g/n/ac, dual-band, Wi-Fi Direct, DLNA, hotspot
Bluetooth 5.0, A2DP, LE, aptX HD
GPS Yes, with A-GPS, GLONASS, BDS, GALILEO
NFC Yes
Radio No
USB 3.1, Type-C 1.0 reversible connector (PowerDelivery 2.0)
Features Sensors Fingerprint (rear-mounted), accelerometer, gyro, proximity, compass, barometer
Messaging SMS(threaded view), MMS, Email, Push Email, IM
Browser HTML5
– Fast battery charging 9V/2A 18W
– QI wireless charging
– MP4/H.265 player
– MP3/WAV/eAAC+ player
– Photo/video editor
– Document editor
Battery Non-removable Li-Ion 2915 mAh battery
Misc Colors Clearly White, Just Black, Not Pink
Price About 860 EUR
