Apple iPhone 14 Pro Max Radiation Levels
Head SAR1.15 W/kg which is Ranked #60 at 71.88% of Legal Limit
| Radiation Levels | HEAD (1g) | BODY (1g) | HOTSPOT (1g) |
|---|---|---|---|
| Cellular Only | 1.15 W/kg | 1.07 W/kg | 1.03 W/kg |
| Simultaneous | 1.4 W/kg | 1.46 W/kg | 1.5 W/kg |
Apple iPhone 14 Pro Max SAR Level Summary:
The cellular transmission SAR values for the Apple iPhone 14 Pro Max (FCC ID BCG-E8141A) are 1.15 W/kg (watts per kilogram) at the head and 1.07 W/kg when worn on the body. The hotspot/Airplay SAR level is 1.03 W/kg. The simultaneous transmission SAR values for iPhone 14 Pro Max (cellular plus Wi-Fi) is 1.40 W/kg at the head, 1.46 W/kg when worn on the body, and 1.50 W/kg when used as a hotspot simultaneously with other transmitters active.
View Thermal Visualization
Apple iPhone 14 Pro Max Safety Tip: Turning Off Wi-Fi and Bluetooth Reduces Radiation.
This SAR chart reveals how turning off Wi-Fi and Bluetooth on your Apple iPhone 14 Pro Max can significantly reduce your exposure to radiation. Our SAR comparison chart shows that by simply turning off these transmitters, you can lower the RF radiation exposure to your head by 17.7%, and you can lower exposure to the body by 26.8%, when considering these differences between cellular-only (Wi-Fi/Bluetooth OFF) and simultaneous use exposure (Wi-Fi/Bluetooth ON), a wise way to reduce excessive phone radiation is to tap off unnecessary transmitters when not in use. Additionally, when using your phone as a hotspot, turning off Bluetooth can reduce your exposure by up to 45.4% according to the FCC SAR report for device number BCG-E8141A.
Apple iPhone 14 Pro Max SAR Levels
| RADIATION LEVELS | CELLULAR ONLY | (% DIFF) | SIMULTANEOUS |
|---|---|---|---|
| HEAD | 1.149 W/kg | 17.7% | 1.396 W/kg |
| BODY | 1.066 W/kg | 26.8% | 1.457 W/kg |
| HOTSPOT | 1.028 W/kg | 45.4% | 1.495 W/kg |
The Specific Absorption Rate (SAR) of a mobile device measures the amount of radio frequency energy absorbed by the body during device usage.
The SAR values for the iphone-14-pro-max (FCC ID BCG-E8141A) are as follows:
- 1.15 W/kg when held at the head with cellular transmission only
- 1.07 W/kg when worn on the body with cellular transmission only
- 1.03 W/kg when used as a Hotspot or Airplay
- 1.4 W/kg when held at the head with simultaneous cellular and Wi-Fi transmission
- 1.46 W/kg when worn on the body with simultaneous cellular and Wi-Fi transmission
- 1.50 when used as a Hotspot simultaneously with other transmitters active.
Apple iPhone 14 Pro Max - SAR Levels
FCC SAR Levels
- FCC Approval Date This is the date the phone SAR test was completed before the phone's release to the public as required by law. 12 August 2022
- FCC ID The FCC ID is the code used to register a device for FCC compliance BCG-E8141A
- FCC Report Link A direct link to the FCC's website for confirming SAR levels that are listed on our website - We did the homework for you!
- US SAR Ratings USA Legal Limit is 1.6 W/kg USA Legal Limit is 1.6 W/kg - FCC SAR testing is measured in watts per kilogram (or W/kg) averaged over ONE gram of simulated biological tissue.
- Head SAR Level SAR test when held against your head when only using cellular service. Wifi and other transmitter are NOT active 1.149 W/kg
- Body SAR Level SAR test when held against your body only using cellular service. Wifi and other transmitter are NOT active 1.066 W/kg
- Product Specific Use SAR test when held against your body only using the phone as a hotspot. Cellular and other transmitter are NOT active 1.028 W/kg
- Simultaneous Transmission The highest possible SAR recorded with ALL transmitters active, Cellular, WiFi, and Hotspot 1.495 W/kg
- Simultaneous Head The highest possible SAR test when held against your HEAD with cellular and WiFi transmitters active, 1.396 W/kg
- Simultaneous Body The highest possible SAR test when held against your BODY with cellular and WiFi transmitters active, 1.457 W/kg
- Hotspot SAR The highest possible SAR test when held against your BODY using the phone as a hotspot with cellular and WiFi transmitters active, 1.495 W/kg
EU SAR Level
- EU SAR Ratings European Legal Limit is 2.0 W/kg - EU SAR testing is measured in watts per kilogram (or W/kg) averaged over TEN grams of simulated biological tissue.
- Head SAR Level 0.99 W/kg
- Body SAR Level 0.98 W/kg

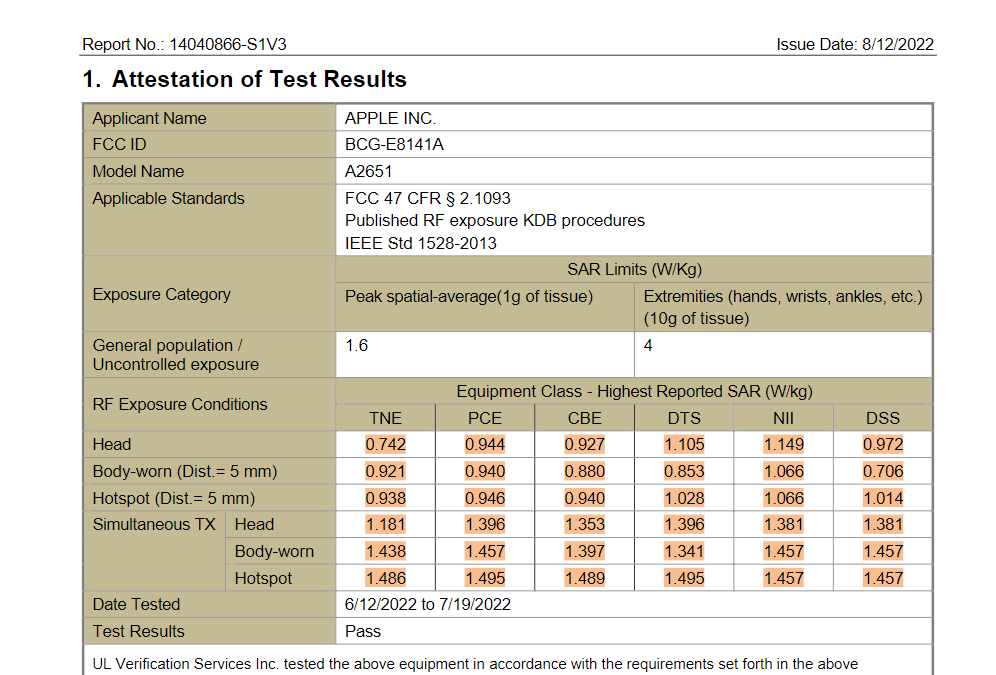

FCC SAR Report A2651 (USA), BCG-E8141A bcg-e8141a-a2650-iphone-14-pro-max-sar-level-report
Apple iPhone 14 Pro Max SAR test reports filed with the Federal Communications Commission FCCID BCG-E8141A— the Specific Absorption Rate (SAR) Apple iPhone 14 Pro Max is: 1.15 watts per kilogram (w/kg) at your head and 1.07 W/kg when worn on your body. The Apple iPhone 14 Pro Max hotspot SAR is 1.028 W/kg, and its SAR for max simultaneous transmission (cellular plus Wi-Fi) is 1.495 W/kg when used as a hotspot simultaneously with other transmitters active. There is also an Apple iPhone 14 Pro Max SAR rating for head and body simultaneous transmission usage (cellular plus Wi-Fi). Simultaneous transmission at your head absorbs radiation at 1.396 W/kg, and simultaneous usage at the body is 1.457 W/kg.
It’s official, size does matter…. Well, a little, according to Apple! The latest Apple iPhone SAR report found that “The Housing size is shown to have a small impact on the SAR and E-field values. It can be observed that the housing with a smaller size will leak the most from the side, but the SAR numbers are still less than 0.01% of the SAR limit of 1.6 W/Kg.”
So people that bought the smaller iPhone might be getting more than they bargained for, like just a little more radiation penetrating the brain. How do these little-screen iPhone radiation leakers compare to the big-screen iPhone models? Let’s put the size difference into perspective.

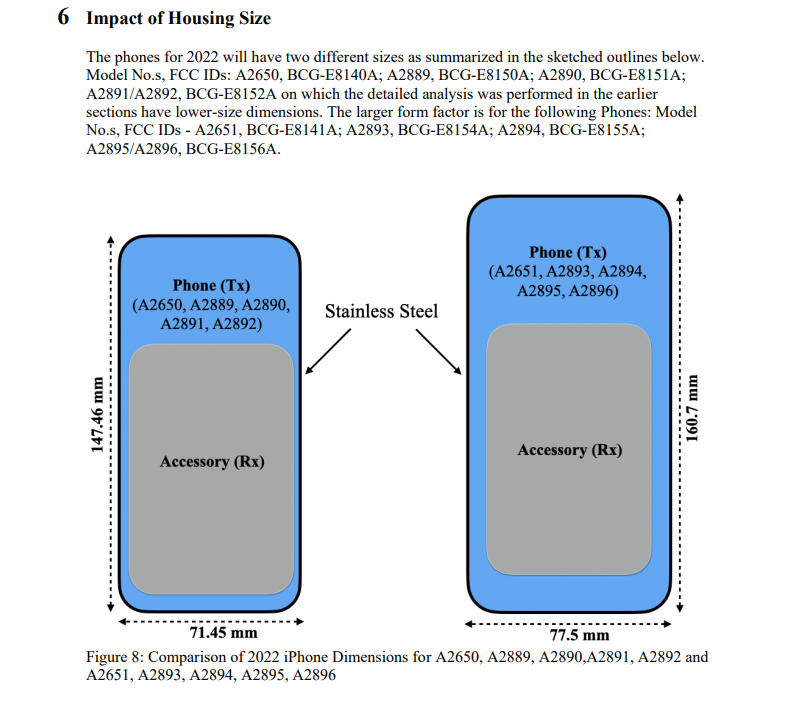

The following graph shows the radiation surrounding a small and large iPhone form factor. As stated in the report, “It can be observed that the housing with a smaller size will leak the most from the side. “. This isn’t readily available radiation exposure information as it takes a fair amount of digging to find the official reports. However, I think this is something every consumer has a right to know that the form factor of a phone can influence the amount of radiation the body absorbs.
Now on to the actual SAR values for the Apple iPhone 14 Pro Max
Versions: A2894 (International); A2651 (USA), BCG-E8141A; A2893 (Canada, Japan), BCG-E8154A; A2896 (China, Hong Kong) and A2895 (Russia), BCG-E8156A;

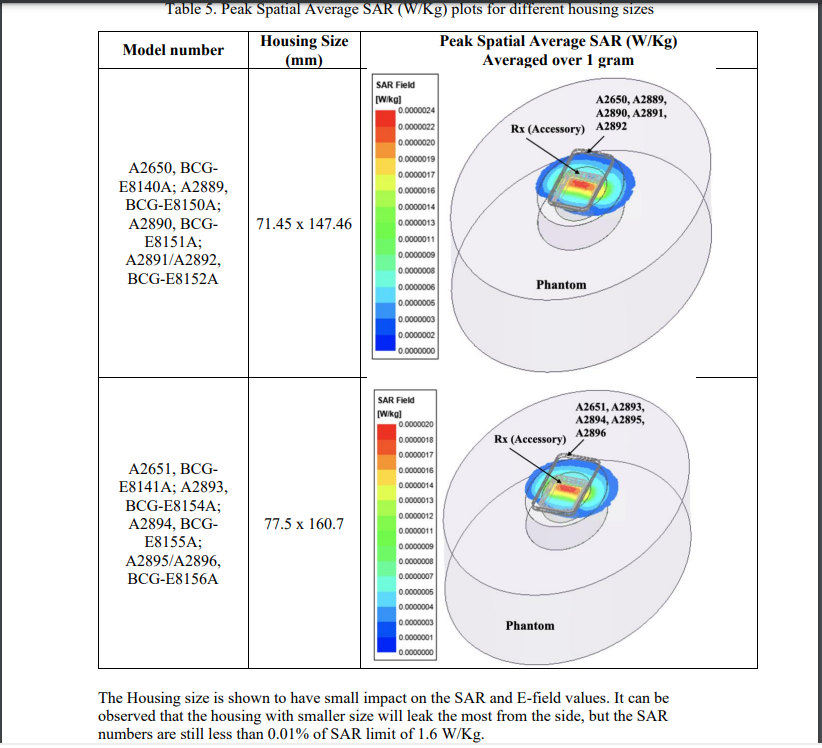

It was found that, “The Housing size is shown to have small impact on the SAR and E-field values. It can be
observed that the housing with smaller size will leak the most from the side, but the SAR
numbers are still less than 0.01% of SAR limit of 1.6 W/Kg.”.
Unofficial preliminary specifications
| Network | Technology | GSM / CDMA / HSPA / EVDO / LTE / 5G |
|---|---|---|
| 2G bands | GSM 850 / 900 / 1800 / 1900 – SIM 1 & SIM 2 (dual-SIM) | |
| CDMA 800 / 1900 | ||
| 3G bands | HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100 | |
| CDMA2000 1xEV-DO | ||
| 4G bands | LTE | |
| 5G bands | SA/NSA/Sub6 – International | |
| SA/NSA/Sub6/mmWave – USA | ||
| Speed | HSPA 42.2/5.76 Mbps, LTE-A, 5G, EV-DO Rev.A 3.1 Mbps |
| Launch | Announced | Expected announcement 2022, September 07 |
|---|---|---|
| Status | Rumored. Exp. release 2022, September 16 |
| Body | Dimensions | 160.7 x 77.6 x 7.9 mm (6.33 x 3.06 x 0.31 in) |
|---|---|---|
| Weight | – | |
| Build | Glass front (Gorilla Glass), glass back (Gorilla Glass), stainless steel frame | |
| SIM | Single SIM (Nano-SIM and/or eSIM) or Dual SIM (Nano-SIM/eSIM, dual stand-by) | |
| IP68 dust/water resistant (up to 6m for 30 mins) Apple Pay (Visa, MasterCard, AMEX certified) |
| Display | Type | Super Retina XDR OLED, 120Hz, HDR10, Dolby Vision, 1000 nits (HBM), 1200 nits (peak) |
|---|---|---|
| Size | 6.7 inches, 110.3 cm2 (~88.4% screen-to-body ratio) | |
| Resolution | 1284 x 2778 pixels, 19.5:9 ratio (~457 ppi density) | |
| Protection | Scratch-resistant ceramic glass, oleophobic coating |
| Platform | OS | iOS 16 |
|---|---|---|
| Chipset | Apple A16 Bionic (5 nm) | |
| CPU | Hexa-core | |
| GPU | Apple GPU |
| Memory | Card slot | No |
|---|---|---|
| Internal | 128GB 6GB RAM, 256GB 6GB RAM, 512GB 6GB RAM, 1TB 6GB RAM | |
| NVMe |
| Main Camera | Quad | 48 MP, (wide), dual pixel PDAF, sensor-shift OIS 12 MP, f/2.8, 77mm (telephoto), PDAF, OIS, 3x optical zoom 12 MP, f/1.8, 13mm, 120 (ultrawide), 1.4m, PDAF TOF 3D LiDAR scanner (depth) |
|---|---|---|
| Features | Dual-LED dual-tone flash, HDR (photo/panorama) | |
| Video | 4K@24/30/60fps, 1080p@30/60/120/240fps, 10-bit HDR, Dolby Vision HDR (up to 60fps), ProRes, Cinematic mode, stereo sound rec. |
| Selfie camera | Dual | 12 MP, f/2.2, 23mm (wide), 1/3.6″ SL 3D, (depth/biometrics sensor) |
|---|---|---|
| Features | HDR | |
| Video | 4K@24/25/30/60fps, 1080p@30/60/120fps, gyro-EIS |
| Sound | Loudspeaker | Yes, with stereo speakers |
|---|---|---|
| 3.5mm jack | No |
| Comms | WLAN | Wi-Fi 802.11 a/b/g/n/ac/6, dual-band, hotspot |
|---|---|---|
| Bluetooth | 5.3, A2DP, LE | |
| GPS | Yes, with A-GPS, GLONASS, GALILEO, BDS, QZSS | |
| NFC | Yes | |
| Radio | No | |
| USB | Lightning, USB 2.0 |
| Features | Sensors | Face ID, accelerometer, gyro, proximity, compass, barometer |
|---|---|---|
| Ultra Wideband (UWB) support |
| Battery | Type | Li-Ion, non-removable |
|---|---|---|
| Charging | Fast charging USB Power Delivery 2.0 MagSafe wireless charging 15W Qi magnetic fast wireless charging 7.5W |
| Misc | Colors | Graphite; other colors |
|---|
