Samsung Galaxy S22 Radiation Levels


Samsung Galaxy S22 SAR Level Summary: View Thermal Visualization
The cellular transmission SAR values for the Samsung Galaxy S22 (FCC ID A3LSMS901U) are 1.03 W/kg (watts per kilogram) at the head and 1.15 W/kg when worn on the body. The hotspot/Airplay SAR level is 1.25 W/kg. The simultaneous transmission SAR values for (cellular plus Wi-Fi) is 1.55 W/kg at the head, 1.57 W/kg when worn on the body, and 1.59 W/kg when used as a hotspot simultaneously with other transmitters active.


Samsung Galaxy S22 - SAR Levels

FCC SAR Levels

  • FCC Approval Date This is the date the phone SAR test was completed before the phone's release to the public as required by law.
    07 December 2021
  • FCC ID The FCC ID is the code used to register a device for FCC compliance
    A3LSMS901U
  • FCC Report Link A direct link to the FCC's website for confirming SAR levels that are listed on our website - We did the homework for you!
  • US SAR Ratings USA Legal Limit is 1.6 W/kg
    USA Legal Limit is 1.6 W/kg - FCC SAR testing is measured in watts per kilogram (or W/kg) averaged over ONE gram of simulated biological tissue.
  • Head SAR Level SAR test when held against your head when only using cellular service. Wifi and other transmitter are NOT active
    1.03 W/kg
  • Body SAR Level SAR test when held against your body only using cellular service. Wifi and other transmitter are NOT active
    1.15 W/kg
  • Product Specific Use SAR test when held against your body only using the phone as a hotspot. Cellular and other transmitter are NOT active
    1.25 W/kg
  • Simultaneous Transmission The highest possible SAR recorded with ALL transmitters active, Cellular, WiFi, and Hotspot
    1.59 W/kg
  • Simultaneous Head The highest possible SAR test when held against your HEAD with cellular and WiFi transmitters active,
    1.55 W/kg
  • Simultaneous Body The highest possible SAR test when held against your BODY with cellular and WiFi transmitters active,
    1.57 W/kg
  • Hotspot SAR The highest possible SAR test when held against your BODY using the phone as a hotspot with cellular and WiFi transmitters active,
    1.59 W/kg

EU SAR Level

  • EU SAR Ratings
    European Legal Limit is 2.0 W/kg - EU SAR testing is measured in watts per kilogram (or W/kg) averaged over TEN grams of simulated biological tissue.
  • Head SAR Level
    1.21 W/kg
  • Body SAR Level
    1.59 W/kg

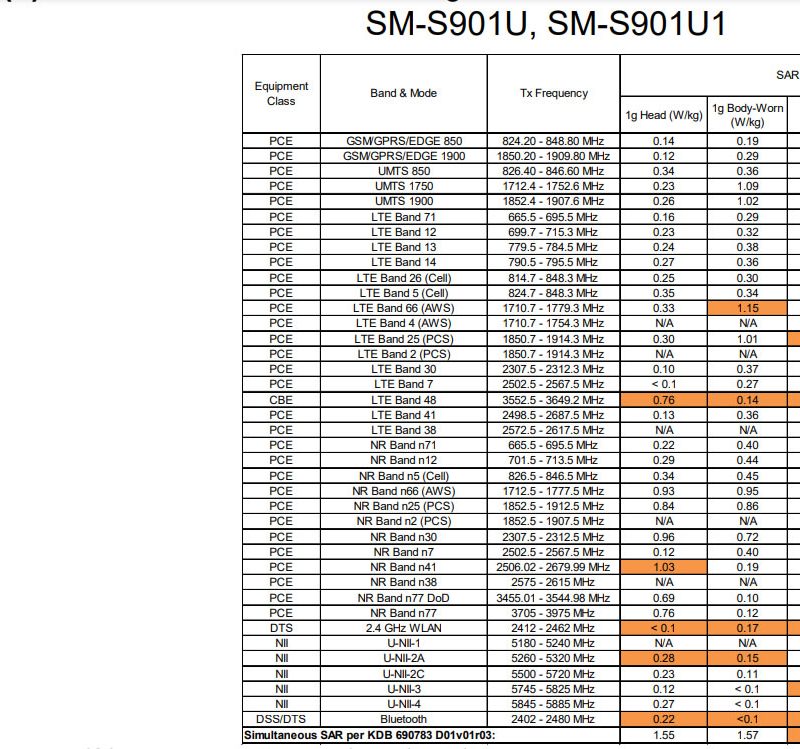

A3LSMS901U-sar-test-report



Versions: SM-S901B, SM-S901B/DS (International); SM-S901U (USA); SM-S901U1 (USA unlocked); SM-S901W (Canada); SM-S901N (Korea); SM-S9010 (China); SM-S901E (Asia/Africa)

Network Technology GSM / CDMA / HSPA / EVDO / LTE / 5G
2G bands GSM 850 / 900 / 1800 / 1900 – SIM 1 & SIM 2 (Dual SIM model only)
CDMA 800 / 1900 & TD-SCDMA
3G bands HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100
CDMA2000 1xEV-DO
4G bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 18, 19, 20, 25, 26, 28, 32, 38, 39, 40, 41, 66 – SM-S901B
5G bands 1, 2, 3, 5, 7, 8, 12, 20, 25, 28, 38, 40, 41, 66, 75, 77, 78 SA/NSA/Sub6 – SM-S901B
SA/NSA/Sub6/mmWave – USA
Speed HSPA 42.2/5.76 Mbps, LTE-A (7CA) Cat20 2000/200 Mbps; 5G (5+ Gbps DL)
Launch Announced 2022, February 09
Status Available. Released 2022, February 25
Body Dimensions 146 x 70.6 x 7.6 mm (5.75 x 2.78 x 0.30 in)
Weight 167 g / 168 g (mmWave) (5.89 oz)
Build Glass front (Gorilla Glass Victus+), glass back (Gorilla Glass Victus+), aluminum frame
SIM Single SIM (Nano-SIM) or Dual SIM (2 Nano-SIMs + eSIM, dual stand-by)
IP68 dust/water resistant (up to 1.5m for 30 mins)
Armour aluminum frame with tougher drop and scratch resistance (advertised)
Display Type Dynamic AMOLED 2X, 120Hz, HDR10+, 1300 nits (peak)
Size 6.1 inches, 90.1 cm2 (~87.4% screen-to-body ratio)
Resolution 1080 x 2340 pixels, 19.5:9 ratio (~425 ppi density)
Protection Corning Gorilla Glass Victus+
Always-on display
Platform OS Android 12, One UI 4.1
Chipset Exynos 2200 (4 nm) – Europe
Qualcomm SM8450 Snapdragon 8 Gen 1 (4 nm) – ROW
CPU Octa-core (1×2.8 GHz Cortex-X2 & 3×2.50 GHz Cortex-A710 & 4×1.8 GHz Cortex-A510) – Europe
Octa-core (1×3.00 GHz Cortex-X2 & 3×2.40 GHz Cortex-A710 & 4×1.70 GHz Cortex-A510) – ROW
GPU Xclipse 920 – Europe
Adreno 730 – ROW
Memory Card slot No
Internal 128GB 8GB RAM, 256GB 8GB RAM
UFS 3.1
Main Camera Triple 50 MP, f/1.8, 23mm (wide), 1/1.56″, 1.0m, Dual Pixel PDAF, OIS
10 MP, f/2.4, 70mm (telephoto), 1/3.94″, 1.0m, PDAF, OIS, 3x optical zoom
12 MP, f/2.2, 13mm, 120 (ultrawide), 1/2.55″ 1.4m, Super Steady video
Features LED flash, auto-HDR, panorama
Video 8K@24fps, 4K@30/60fps, 1080p@30/60/240fps, 720p@960fps, HDR10+, stereo sound rec., gyro-EIS
Selfie camera Single 10 MP, f/2.2, 26mm (wide), 1/3.24″, 1.22m, Dual Pixel PDAF
Features Dual video call, Auto-HDR
Video 4K@30/60fps, 1080p@30fps
Sound Loudspeaker Yes, with stereo speakers
3.5mm jack No
32-bit/384kHz audio
Tuned by AKG
Comms WLAN Wi-Fi 802.11 a/b/g/n/ac/6, dual-band, Wi-Fi Direct, hotspot
Bluetooth 5.2, A2DP, LE
GPS Yes, with A-GPS, GLONASS, BDS, GALILEO
NFC Yes
Radio No
USB USB Type-C 3.2, USB On-The-Go
Features Sensors Fingerprint (under display, ultrasonic), accelerometer, gyro, proximity, compass, barometer
Samsung DeX, Samsung Wireless DeX (desktop experience support)
Bixby natural language commands and dictation
Samsung Pay (Visa, MasterCard certified)
Battery Type Li-Ion 3700 mAh, non-removable
Charging Fast charging 25W
USB Power Delivery 3.0
Fast Qi/PMA wireless charging 15W
Reverse wireless charging 4.5W
Misc Colors Phantom Black, White, Pink Gold, Green, Graphite, Sky Blue, Violet, Cream
Models SM-S901B, SM-S901B/DS, SM-S901U, SM-S901U1, SM-S901W, SM-S901N, SM-S9010, SM-S901E, SM-S901E/DS
SAR 1.03 W/kg (head)     1.15 W/kg (body)
SAR EU 1.21 W/kg (head)     1.59 W/kg (body)
Price C$ 1,099.99 / ₹ 72,999 / $ 799.99 / £ 847.00
Tests Camera Photo / Video
Loudspeaker -26.4 LUFS (Good)
