Google Pixel 5 Radiation Levels

Head SAR
Next >>
Head SAR
1.16 W/kg which is Ranked #64 at 72.50% of Legal Limit
More Info: Click SAR Level Below
Radiation LevelsHEAD (1g)BODY (1g)HOTSPOT (1g)
Cellular Only1.16 W/kg1.18 W/kg0.98 W/kg
Simultaneous0.98 W/kg1.49 W/kg1.58 W/kg


Add to Compare Compare Google Pixel 5 Add to Compare Compare





Google Pixel 5 SAR Level Summary:

The cellular transmission SAR values for the Google Pixel 5 (FCC ID A4RGD1YQ) are 1.16 W/kg (watts per kilogram) at the head and 1.18 W/kg when worn on the body. The hotspot/Airplay SAR level is 0.98 W/kg. The simultaneous transmission SAR values for Pixel 5 (cellular plus Wi-Fi) is 0.98 W/kg at the head, 1.49 W/kg when worn on the body, and 1.58 W/kg when used as a hotspot simultaneously with other transmitters active.




View Thermal Visualization

Head SAR (Wi-Fi Off) || View Body SAR


Head SAR (Wi-Fi Off) || View Body SAR

1.16 when held at the head with cellular transmission only

SAR
SAR
Google Pixel 5
Head Cellular Only SAR Test
72.50%
WARNING




Head Simultaneous SAR (Wi-Fi On)

0.98 W/kg when held at the head with simultaneous cellular and Wi-Fi transmission

SAR
SAR
Google Pixel 5
Head Simultaneous SAR Test
61.25%
WARNING



Google Pixel 5 Safety Tip: Turning Off Wi-Fi and Bluetooth Reduces Radiation.

This SAR chart reveals how turning off Wi-Fi and Bluetooth on your Google Pixel 5 can significantly reduce your exposure to radiation. Our SAR comparison chart shows that by simply turning off these transmitters, you can lower the RF radiation exposure to your head by 18.4%, and you can lower exposure to the body by 20.6%, when considering these differences between cellular-only (Wi-Fi/Bluetooth OFF) and simultaneous use exposure (Wi-Fi/Bluetooth ON), a wise way to reduce excessive phone radiation is to tap off unnecessary transmitters when not in use. Additionally, when using your phone as a hotspot, turning off Bluetooth can reduce your exposure by up to 61.2% according to the FCC SAR report for device number A4RGD1YQ.

Google Pixel 5 SAR Levels

Comparison of SAR levels between cellular-only and simultaneous exposure
RADIATION LEVELSCELLULAR ONLY(% DIFF)SIMULTANEOUS
HEAD1.16 W/kg18.4%0.98 W/kg
BODY1.18 W/kg20.6%1.487 W/kg
HOTSPOT0.98 W/kg61.2%1.58 W/kg

The Specific Absorption Rate (SAR) of a mobile device measures the amount of radio frequency energy absorbed by the body during device usage.

The SAR values for the Pixel 5 (FCC ID A4RGD1YQ) are as follows:

  • 1.16 W/kg when held at the head with cellular transmission only
  • 1.18 W/kg when worn on the body with cellular transmission only
  • 0.98 W/kg when used as a Hotspot or Airplay
  • 0.98 W/kg when held at the head with simultaneous cellular and Wi-Fi transmission
  • 1.49 W/kg when worn on the body with simultaneous cellular and Wi-Fi transmission
  • 1.58 when used as a Hotspot simultaneously with other transmitters active.

Google Pixel 5 - SAR Levels

FCC SAR Levels

  • FCC Approval Date This is the date the phone SAR test was completed before the phone's release to the public as required by law.
    14 August 2020
  • FCC ID The FCC ID is the code used to register a device for FCC compliance
    A4RGD1YQ
  • FCC Report Link A direct link to the FCC's website for confirming SAR levels that are listed on our website - We did the homework for you!
    FCC Specific Absorption Rate (SAR) Report For Manufacturer Submitted Model
  • US SAR Ratings USA Legal Limit is 1.6 W/kg
    USA Legal Limit is 1.6 W/kg - FCC SAR testing is measured in watts per kilogram (or W/kg) averaged over ONE gram of simulated biological tissue.
  • Head SAR Level SAR test when held against your head when only using cellular service. Wifi and other transmitter are NOT active
    1.16 W/kg
  • Body SAR Level SAR test when held against your body only using cellular service. Wifi and other transmitter are NOT active
    1.18 W/kg
  • Product Specific Use SAR test when held against your body only using the phone as a hotspot. Cellular and other transmitter are NOT active
    0.98 W/kg
  • Simultaneous Transmission The highest possible SAR recorded with ALL transmitters active, Cellular, WiFi, and Hotspot
    1.58 W/kg
  • Simultaneous Head The highest possible SAR test when held against your HEAD with cellular and WiFi transmitters active,
    0.98 W/kg
  • Simultaneous Body The highest possible SAR test when held against your BODY with cellular and WiFi transmitters active,
    1.487 W/kg
  • Hotspot SAR The highest possible SAR test when held against your BODY using the phone as a hotspot with cellular and WiFi transmitters active,
    1.58 W/kg

EU SAR Level

  • EU SAR Ratings
    European Legal Limit is 2.0 W/kg - EU SAR testing is measured in watts per kilogram (or W/kg) averaged over TEN grams of simulated biological tissue.
  • Head SAR Level
    N/A
  • Body SAR Level
    N/A
Network Technology GSM / CDMA / HSPA / EVDO / LTE / 5G
2G bands GSM 850 / 900 / 1800 / 1900
CDMA 800 / 1700 / 1900
3G bands HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100
CDMA2000 1xEV-DO
4G bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 18, 19, 20, 25, 26, 28, 29, 30, 32, 38, 39, 40, 41, 42, 46, 48, 66, 71
5G bands 1, 2, 3, 5, 7, 8, 12, 28, 41, 66, 71, 77, 78, 258, 260, 261 Sub6/mmWave – GD1YQ
1, 2, 3, 5, 7, 8, 12, 28, 41, 66, 71, 77, 78 Sub6 – GTT9Q
Speed HSPA 42.2/5.76 Mbps, LTE-A (CA), 5G
Launch Announced 2020, September 30
Status Available. Released 2020, October 15
Body Dimensions 144.7 x 70.4 x 8 mm (5.70 x 2.77 x 0.31 in)
Weight 151 g (5.33 oz)
Build Glass front (Gorilla Glass 6), aluminum back, aluminum frame
SIM Nano-SIM and/or eSIM
IP68 dust/water resistant (up to 1.5m for 30 mins)
Display Type OLED, 90Hz, HDR10+
Size 6.0 inches, 87.6 cm2 (~85.9% screen-to-body ratio)
Resolution 1080 x 2340 pixels, 19.5:9 ratio (~432 ppi density)
Protection Corning Gorilla Glass 6
Always-on display
Platform OS Android 11
Chipset Qualcomm SM7250 Snapdragon 765G 5G (7 nm)
CPU Octa-core (1×2.4 GHz Kryo 475 Prime & 1×2.2 GHz Kryo 475 Gold & 6×1.8 GHz Kryo 475 Silver)
GPU Adreno 620
Memory Card slot No
Internal 128GB 8GB RAM
UFS 2.1
Main Camera Dual 12.2 MP, f/1.7, 27mm (wide), 1/2.55″, 1.4m, dual pixel PDAF, OIS
16 MP, f/2.2, 107 (ultrawide), 1.0m
Features LED flash, Pixel Shift, Auto-HDR, panorama
Video 4K@30/60fps, 1080p@30/60/120/240fps; gyro-EIS
Selfie camera Single 8 MP, f/2.0, 24mm (wide), 1/4.0″, 1.12m
Features Auto-HDR
Video 1080p@30fps
Sound Loudspeaker Yes, with stereo speakers
3.5mm jack No
Comms WLAN Wi-Fi 802.11 a/b/g/n/ac, dual-band, Wi-Fi Direct, hotspot
Bluetooth 5.0, A2DP, LE, aptX HD
GPS Yes, with A-GPS, GLONASS, GALILEO, QZSS, BDS
NFC Yes
Radio No
USB USB Type-C 3.1
Features Sensors Fingerprint (rear-mounted), accelerometer, gyro, proximity, compass, barometer
Battery Type Li-Po 4080 mAh, non-removable
Charging USB Power Delivery 2.0
Fast charging 18W
Wireless charging 12W
Reverse charging 5W
Misc Colors Just Black, Sorta Sage
Models GD1YQ, GTT9Q
Price $ 629.99 / € 719.77 / £ 599.00 / ₹ 63,710
Tests Display Contrast ratio: Infinite (nominal)
Battery life Endurance rating 95h

Google Pixel 5 - QuantaCase™

Sale!
quantacase-close-phone-case-to-shield-head-from-radiation-icon.fw
Quick View

Pixel 5

RF Safe® Google Pixel 5 QuantaCase™ RFS1 Phone Radiation Shield

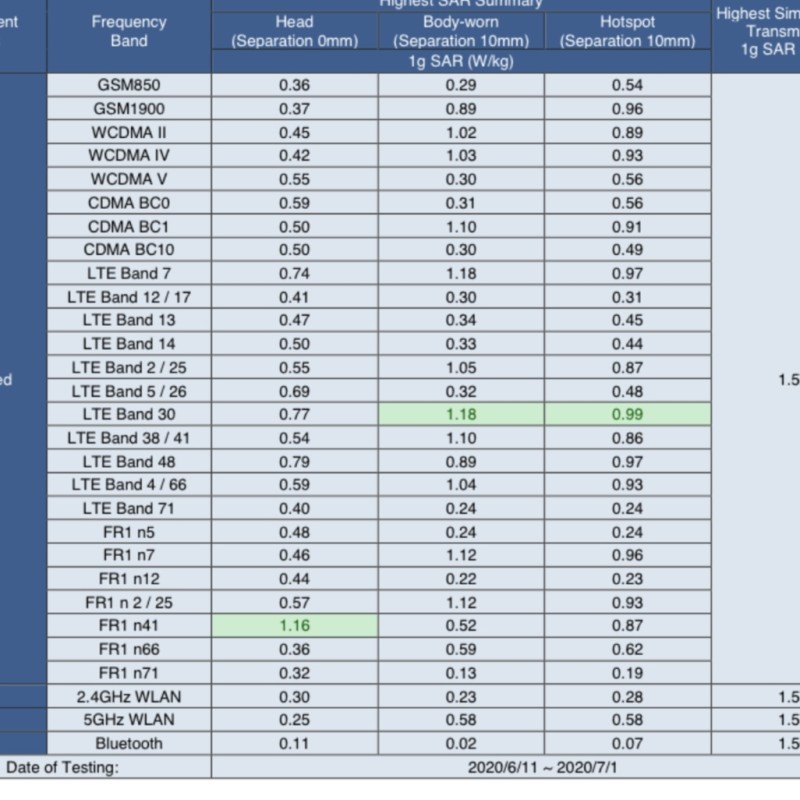

Google Pixel 5 - FCC SAR Report Image

Google Pixel 5 - Videos

Google Pixel 5 - Offers

    General || General Spec Review
    PhoneGoogle Pixel 5
    TechnologyGSM / CDMA / HSPA / EVDO / LTE / 5G
    Announced30 September 2020
    StatusAvailable. Released 2020, October 15
    Price$ 629.99 / € 719.77 / £ 599.00 / ₹ 63,710
    Model NamesGD1YQ, GTT9Q
    Display || Display Spec Review
    TypeOLED, 90Hz, HDR10+
    Display Technology => A number of display technologies and types used in mobile phones => TFT (Thin Film Transistor), IPS (In-Place Switching), OLED (Organic Light Emitting Diode), AMOLED (Active-Matrix Organic Light-Emitting Diode), Super AMOLED (an even advanced version of AMOLED), Resistive Touchscreen (Resistive touchscreens contain two layer of conductive material with a very small gap between them which acts as a resistance), Capacitive Touchsceen (Capacitive touchscreen technology consists of a layer of glass coated with a transparent conductor)
    Size6.0 inches, 87.6 cm2 (~85.9% screen-to-body ratio)
    Resolution1080 x 2340 pixels, 19.5:9 ratio (~432 ppi density)
    ProtectionCorning Gorilla Glass 6
    Display Protection => Gorilla Glass is a special alkali-aluminosilicate glass shield with exceptional damage resistance that helps protect mobile displays from scratches, drops, and bumps of everyday use, It is always better to go for a smartphone with Gorilla Glass for that added protection and peace of mind.
    FeaturesCorning Gorilla Glass 6 Always-on display
    Display Test Contrast ratio: Infinite (nominal)
    Camera || Camera Spec Review
    Main CameraDual Camera: 12.2 MP, f/1.7, 27mm (wide), 1/2.55", 1.4m, dual pixel PDAF, OIS
    16 MP, f/2.2, 107 (ultrawide), 1.0m
    Camera is able to capture photographs and usually videos, The most important characteristics of a camera are the resolution (measured in megapixels), lens focus type (fixed or automatic), higher megapixel cameras are known to capture higher quality photos, but not always a good measurement of the photos quality.
    Main Features LED flash, Pixel Shift, Auto-HDR, panorama
    Video 4K@30/60fps, 1080p@30/60/120/240fps; gyro-EIS
    Selfie CameraSingle Camera: 8 MP, f/2.0, 24mm (wide), 1/4.0", 1.12m
    Selfie Camera Features Auto-HDR
    Selfie Camera Video 1080p@30fps
    Battery || Battery Spec Review
    TypeLi-Po 4080 mAh, non-removable
    Battery Type => Cell phones run on various kinds of batteries depending on the manufacturer, phone size or shape and features. There are basically four types of cell phone batteries => Lithium Polymer, Lithium Ion, Nickel Metal Hydride and Nickel Cadmium.
    Battery Test Endurance rating 95h
    Battery Capacity is a measure (typically in Amp-hr) of the charge stored by the battery, and is determined by the mass of active material contained in the battery. The battery capacity represents the maximum amount of energy that can be extracted from the battery under certain conditions.
    Charging USB Power Delivery 2.0
    Fast charging 18W
    Wireless charging 12W
    Reverse charging 5W
    Hardware || Hardware Spec Review
    Operating SystemAndroid 11
    ChipsetQualcomm SM7250 Snapdragon 765G 5G (7 nm)
    Chipset is a group of integrated circuits designed to perform one or a more dedicated functions, often with real time computing constraints, Popular smartphones are equipped with more advanced embedded chipsets that can do many different tasks depending on their programming.
    CPUOcta-core (1x2.4 GHz Kryo 475 Prime & 1x2.2 GHz Kryo 475 Gold & 6x1.8 GHz Kryo 475 Silver)
    CPU (Central Processing Unit) mostly known as processors, CPU processes instructions in order to carry out certain functions that make your device operate properly. Processors are often described as the brain of computers, smartphones and tablets, Smartphones and tablets rely on processors to carry out their every task, Processors are an incredibly important factor in selecting any type of computing device, including your smartphone.
    GPUAdreno 620
    GPU (Graphics Processing Unit) is a single-chip processor designed to rapidly manipulate and alter memory to accelerate the creation of images in a frame buffer intended for output to a display, This includes things such as lighting effects, object transformations, and 3D motion.
    Internal Storage128GB 8GB RAM
    Internal Storage is a data storage space (flash memory) mostly used in smartphones, tablets and other electronic devices where operating system, apps, music, photos, videos, files and other user data Is stored.
    Card SlotNo
    Memory Card Slot is a special slot for inserting a memory card. Memory cards allow you to expand the phone's built-in memory, A memory card (sometimes called a flash memory card or a storage card) is a small storage medium used to store data such as text, pictures, audio, and video, for use on small, portable or remote computing devices such as mobile phones, mp3 players, digital cameras.
    SensorsFingerprint (rear-mounted), accelerometer, gyro, proximity, compass, barometer
    Sensors are electronic components that detects and responds to some type of input from the physical environment. The specific input could be light, heat, motion, moisture, pressure and location, The output is generally a signal that is converted to use in computing systems, a location sensor, such as a GPS receiver is able to detect current location of your electronic device.
    Connectivity || Connectivity Spec Review
    Wi-fiWi-Fi 802.11 a/b/g/n/ac, dual-band, Wi-Fi Direct, hotspot
    Wi-Fi is a popular wireless networking technology using radio waves to provide high-speed network connections that allows devices to communicate without cords or cables, Wi-Fi is increasingly becoming the preferred mode of internet connectivity all over the world.
    Bluetooth5.0, A2DP, LE, aptX HD
    Bluetooth is a wireless communications technology for exchanging data between mobile phones, headsets, computers and other network devices over short distances without wires, Bluetooth technology was primarily designed to support simple wireless networking of personal consumer devices.
    USBUSB Type-C 3.1
    GPS Yes, with A-GPS, GLONASS, GALILEO, QZSS, BDS
    GPS The Global Positioning System is a satellite-based radio navigation system, GPS permits users to determine their position, velocity and the time 24 hours a day, in all weather, anywhere in the world, In order to locate your position, your device or GPS receiver must have a clear view of the sky.
    NFCYes
    NFC (Near field communication) is a set of standards for smartphones and similar devices to establish peer-to-peer radio communications with each other by touching them together or bringing them into proximity, usually no more than a few inches.
    RadioNo
    Sound || Sound Spec Review
    Loudspeaker Yes, with stereo speakers
    3.5mm Jack No
    Design || Design Spec Review
    TypeBar
    Design Type called form factor refers to a mobile phone's size, shape, and style as well as the layout and position of major components of phone. There are three major form factors seen in mobile phones => bar phones, folding phones and sliding phones.
    Dimensions144.7 x 70.4 x 8 mm (5.70 x 2.77 x 0.31 in)
    Weight151 g (5.33 oz)
    ColorsJust Black, Sorta Sage
    BuildGlass front (Gorilla Glass 6), aluminum back, aluminum frame
    Network || Network Spec Review
    SpeedHSPA 42.2/5.76 Mbps, LTE-A (CA), 5G
    SIMNano-SIM and/or eSIM
    SIM (Subscriber Identity Module) is a small card that contains mobile network subscriber's account information. This allows the phone using the card to attach to a mobile network. The SIM card is most commonly associated with GSM and UMTS mobile networks. Moving a SIM card from one phone to another allows a subscriber to switch mobile phones without having to contact their mobile network carrier. SIM cards can also be used by a phone to store limited amounts of data, such as phone numbers and text messages.
    2G NetworkGSM 850 / 900 / 1800 / 1900
    3G NetworkHSDPA 850 / 900 / 1700(AWS) / 1900 / 2100
    4G Network1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 18, 19, 20, 25, 26, 28, 29, 30, 32, 38, 39, 40, 41, 42, 46, 48, 66, 71
    5G Network1, 2, 3, 5, 7, 8, 12, 28, 41, 66, 71, 77, 78, 258, 260, 261 Sub6/mmWave - GD1YQ
    FCC SAR Levels || FCC SAR Levels Spec Review
    FCC Approval Date14 August 2020
    This is the date the phone SAR test was completed before the phone's release to the public as required by law.
    FCC IDA4RGD1YQ
    The FCC ID is the code used to register a device for FCC compliance
    FCC Report LinkFCC Specific Absorption Rate (SAR) Report For Manufacturer Submitted Model
    A direct link to the FCC's website for confirming SAR levels that are listed on our website - We did the homework for you!
    US SAR RatingsUSA Legal Limit is 1.6 W/kg - FCC SAR testing is measured in watts per kilogram (or W/kg) averaged over ONE gram of simulated biological tissue.
    USA Legal Limit is 1.6 W/kg
    Head SAR Level1.16 W/kg
    SAR test when held against your head when only using cellular service. Wifi and other transmitter are NOT active
    Body SAR Level1.18 W/kg
    SAR test when held against your body only using cellular service. Wifi and other transmitter are NOT active
    Product Specific Use0.98 W/kg
    SAR test when held against your body only using the phone as a hotspot. Cellular and other transmitter are NOT active
    Simultaneous Transmission1.58 W/kg
    The highest possible SAR recorded with ALL transmitters active, Cellular, WiFi, and Hotspot
    Simultaneous Head0.98 W/kg
    The highest possible SAR test when held against your HEAD with cellular and WiFi transmitters active,
    Simultaneous Body1.487 W/kg
    The highest possible SAR test when held against your BODY with cellular and WiFi transmitters active,
    Hotspot SAR1.58 W/kg
    The highest possible SAR test when held against your BODY using the phone as a hotspot with cellular and WiFi transmitters active,
    EU SAR Level || EU SAR Level Spec Review
    EU SAR RatingsEuropean Legal Limit is 2.0 W/kg - EU SAR testing is measured in watts per kilogram (or W/kg) averaged over TEN grams of simulated biological tissue.
    Head SAR LevelN/A
    Body SAR LevelN/A
    SAR TestSAR RankPhoneRankUnique SAR Levels ComparedTotal Phones Compared
    US head42594778
    US body39644378
    Productspecific11183678
    Simul headUS 544378
    Simul bodyUS 28413878
    Hotspot30513178
