Apple iPhone 6 Plus * RF SAFE® Radio Frequency Safe

Apple iPhone 6 Plus Radiation Levels

HEAD SAR LEVEL
1.19 W/kg
Ranked #76.00
(74.38% of limit)
BODY SAR LEVEL
1.19 W/kg
Ranked #74.00
(74.38% of limit)
Simultaneous Head SAR
1.59 W/kg
Ranked #59.00
(99.38% of limit)
Simultaneous Body SAR
1.54 W/kg
Ranked #46.00
(96.25% of limit)
Hotspot SAR Level
1.19 W/kg
Ranked #60.00
(74.38% of limit)
Simultaneous Hotspot
1.59 W/kg
Ranked #56.00
(99.38% of limit)

Apple iPhone 6 Plus SAR Level Summary: View Thermal Visualization
The cellular transmission SAR values for the Apple iPhone 6 Plus (FCC ID BCGE2817A) are 1.19 W/kg (watts per kilogram) at the head and 1.19 W/kg when worn on the body. The hotspot/Airplay SAR level is 1.19 W/kg. The simultaneous transmission SAR values for (cellular plus Wi-Fi) is 1.59 W/kg at the head, 1.54 W/kg when worn on the body, and 1.59 W/kg when used as a hotspot simultaneously with other transmitters active.

SAR Levels
Overview
QuantaCase™

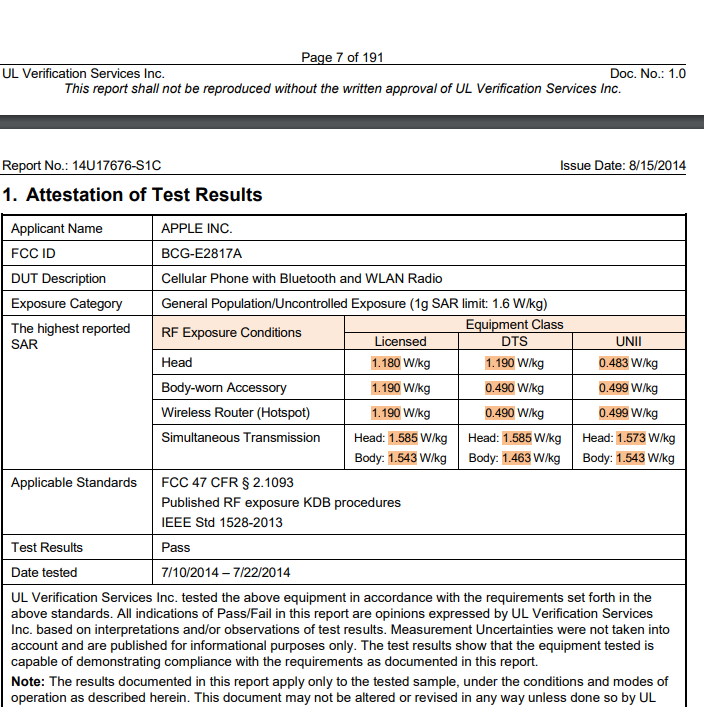

FCC SAR Report Image

Apple iPhone 6 Plus - SAR Levels

FCC SAR Levels

FCC Approval Date This is the date the phone SAR test was completed before the phone's release to the public as required by law.
09 September 2014
FCC ID The FCC ID is the code used to register a device for FCC compliance
BCGE2817A
FCC Report Link A direct link to the FCC's website for confirming SAR levels that are listed on our website - We did the homework for you!
FCC Specific Absorption Rate (SAR) Report For Manufacturer Submitted Model Apple iPhone 6s Plus
US SAR Ratings USA Legal Limit is 1.6 W/kg
USA Legal Limit is 1.6 W/kg - FCC SAR testing is measured in watts per kilogram (or W/kg) averaged over ONE gram of simulated biological tissue. It is a well known FACT SAR testing was not designed for protecting women or children from harmful radiation exposure, and SAR Test do not take into consideration health effects below thermal levels
Head SAR Level SAR test when held against your head when only using cellular service. Wifi and other transmitter are NOT active
1.190 W/kg
Body SAR Level SAR test when held against your body only using cellular service. Wifi and other transmitter are NOT active
1.190 W/kg
Product Specific Use SAR test when held against your body only using the phone as a hotspot. Cellular and other transmitter are NOT active
1.190 W/kg
Simultaneous Transmission The highest possible SAR recorded with ALL transmitters active, Cellular, WiFi, and Hotspot
1.59 W/kg
Simultaneous Head The highest possible SAR test when held against your HEAD with cellular and WiFi transmitters active,
1.585 W/kg
Simultaneous Body The highest possible SAR test when held against your BODY with cellular and WiFi transmitters active,
1.543 W/kg
Hotspot SAR The highest possible SAR test when held against your BODY using the phone as a hotspot with cellular and WiFi transmitters active,
1.59 W/kg

SAR AT&T Model

Carrier Variant
SAR Levels for AT&T Apple Iphone 6 Plus
Model Variant Number
Apple Iphone 6 Plus
FCC Approval Date
23 September 2014
FCC ID
Enter FCCID (first three characters - Grantee Code) with (Remaining characters - Product Code)
FCC Report Link
Link To FCC SAR Test Information For ATT Model Apple Iphone 6 Plus
US SAR Ratings
For any AT&T smartphone to be sold in the USA - SAR levels must not exceed 1.6 W/kg - FCC Specific Absorption Rate (SAR) values for the Apple AT&T model Apple Iphone 6 Plus was measured in watts per kilogram (or W/kg) averaged over ONE gram of simulated biological tissue. It is a well known FACT SAR testing was not designed for protecting women or children from potentially very harmful microwave radiation exposure. Also SAR Test do not take into consideration health effects below thermal levels
Head SAR Level
mesured in watts per kilogram (or W/kg)
Body SAR Level
mesured in watts per kilogram (or W/kg)
Product Specific Use
mesured in watts per kilogram (or W/kg)
Simultaneous Transmission
mesured in watts per kilogram (or W/kg)
Simultaneous Head SAR
mesured in watts per kilogram (or W/kg)
Simultaneous Body SAR
measured in watts per kilogram (or W/kg)
Hotspot SAR
measured in watts per kilogram (or W/kg)

SAR Verizon Model

Carrier Variant
SAR Levels for Verizon Apple Iphone 6 Plus
Model Variant Number
Apple Iphone 6 Plus
FCC Approval Date
23 September 2014
FCC ID
Enter FCCID (first three characters - Grantee Code) with (Remaining characters - Product Code)
FCC Report Link
Link To FCC SAR Test Information For Verizon Model Apple Iphone 6 Plus
US SAR Ratings
For any Verizon smartphone to be sold in the USA - SAR levels must not exceed 1.6 W/kg - FCC Specific Absorption Rate (SAR) values for the Apple Verizon model Apple Iphone 6 Plus was measured in watts per kilogram (or W/kg) averaged over ONE gram of simulated biological tissue. It is a well known FACT SAR testing was not designed for protecting women or children from potentially very harmful microwave radiation exposure. Also SAR Test do not take into consideration health effects below thermal levels
Head SAR Level
mesured in watts per kilogram (or W/kg)
Body SAR Level
mesured in watts per kilogram (or W/kg)
Product Specific Use
mesured in watts per kilogram (or W/kg)
Simultaneous Transmission
mesured in watts per kilogram (or W/kg)
Simultaneous Head SAR
N/A
Simultaneous Body SAR
N/A
Hotspot SAR
N/A

SAR Sprint Model

Carrier Variant
SAR Levels for Sprint Apple Iphone 6 Plus
Model Variant Number
Apple Iphone 6 Plus
FCC Approval Date
23 September 2014
FCC ID
Enter FCCID (first three characters - Grantee Code) with (Remaining characters - Product Code)
FCC Report Link
Link To FCC SAR Test Information For Sprint Model Apple Iphone 6 Plus
US SAR Ratings
For any Sprint Smartphones to be sold in the USA - SAR levels (RF Radiation) must not exceed 1.6 W/kg - FCC Specific Absorption Rate (SAR) values for the Apple Sprint model Apple Iphone 6 Plus was measured in watts per kilogram (or W/kg) averaged over ONE gram of simulated biological tissue. It is a well known FACT SAR testing was not designed for protecting women or children from potentially very harmful microwave radiation exposure. Also SAR Test do not take into consideration health effects below thermal levels
Head SAR Level
mesured in watts per kilogram (or W/kg)
Body SAR Level
mesured in watts per kilogram (or W/kg)
Product Specific Use
mesured in watts per kilogram (or W/kg)
Simultaneous Transmission
mesured in watts per kilogram (or W/kg)
Simultaneous Head SAR
N/A
Simultaneous Body SAR
N/A
Hotspot SAR
N/A

SAR T-Mobile Model

Carrier Variant
SAR Levels for TMobile Apple Iphone 6 Plus
Model Variant Number
Apple Iphone 6 Plus
FCC Approval Date
23 September 2014
FCC ID
Enter FCCID (first three characters - Grantee Code) with (Remaining characters - Product Code)
FCC Report Link
Link To FCC SAR Test Information For TMobile Model Apple Iphone 6 Plus
US SAR Ratings
For any TMobile cell phones to be sold in the USA - SAR levels (RFR Radiation) must not exceed 1.6 W/kg - FCC Specific Absorption Rate (SAR) values for the Apple TMobile model Apple Iphone 6 Plus was measured in watts per kilogram (or W/kg) averaged over ONE gram of simulated biological tissue. It is a well known FACT SAR testing was not designed for protecting women or children from potentially very harmful microwave radiation exposure. Also SAR Test do not take into consideration health effects below thermal levels
Head SAR Level
mesured in watts per kilogram (or W/kg)
Body SAR Level
mesured in watts per kilogram (or W/kg)
Product Specific Use
mesured in watts per kilogram (or W/kg)
Simultaneous Transmission
mesured in watts per kilogram (or W/kg)
Simultaneous Head SAR
N/A
Simultaneous Body SAR
N/A
Hotspot SAR
N/A

SAR Vodafone Model

Carrier Variant
SAR Levels for Vodafone Apple Iphone 6 Plus
Model Variant Number
Apple Iphone 6 Plus
FCC Approval Date
23 September 2014
FCC ID
Enter FCCID (first three characters - Grantee Code) with (Remaining characters - Product Code)
FCC Report Link
Link To FCC SAR Test Information For Vodafone Model Apple Iphone 6 Plus
US SAR Ratings
For any Vodafone cellphones to be sold in the USA - SAR levels (RFR Radiation Exposure) must not exceed 1.6 W/kg - FCC Specific Absorption Rate (SAR) values for the Apple Vodafone model Apple Iphone 6 Plus was measured in watts per kilogram (or W/kg) averaged over ONE gram of simulated biological tissue. It is a well known FACT SAR testing was not designed for protecting women or children from potentially very harmful microwave radiation exposure. Also SAR Test do not take into consideration health effects below thermal levels
Head SAR Level
mesured in watts per kilogram (or W/kg)
Body SAR Level
mesured in watts per kilogram (or W/kg)
Product Specific Use
mesured in watts per kilogram (or W/kg)
Simultaneous Transmission
mesured in watts per kilogram (or W/kg)
Simultaneous Head SAR
N/A
Simultaneous Body SAR
N/A
Hotspot SAR
N/A

SAR U.S. Cellular

Carrier Variant
SAR Levels for U.S. Cellular Apple Iphone 6 Plus
Model Variant Number
Apple Iphone 6 Plus
FCC Approval Date
23 September 2014
FCC ID
Enter FCCID (first three characters - Grantee Code) with (Remaining characters - Product Code)
FCC Report Link
Link To FCC SAR Test Information For U.S. Cellular Model Apple Iphone 6 Plus
US SAR Ratings
For any U.S. Cellular Smartphone to be sold in the USA - SAR levels must not exceed 1.6 W/kg - FCC Specific Absorption Rate (SAR) values for the Apple U.S. Cellular model Apple Iphone 6 Plus was measured in watts per kilogram (or W/kg) averaged over ONE gram of simulated biological tissue. It is a well known FACT SAR testing was not designed for protecting women or children from potentially very harmful microwave radiation exposure. Also SAR Test do not take into consideration health effects below thermal levels
Head SAR Level
mesured in watts per kilogram (or W/kg)
Body SAR Level
mesured in watts per kilogram (or W/kg)
Product Specific Use
mesured in watts per kilogram (or W/kg)
Simultaneous Transmission
mesured in watts per kilogram (or W/kg)
Simultaneous Head SAR
N/A
Simultaneous Body SAR
N/A
Hotspot SAR
N/A

EU SAR Level

EU SAR Ratings
European Legal Limit is 2.0 W/kg - EU SAR testing is measured in watts per kilogram (or W/kg) averaged over TEN grams of simulated biological tissue.
Head SAR Level
0.99 W/kg
Body SAR Level
0.91 W/kg

Network	Technology	GSM / CDMA / HSPA / EVDO / LTE
	2G bands	GSM 850 / 900 / 1800 / 1900 – A1522 (GSM), A1522 (CDMA), A1524
		CDMA 800 / 1700 / 1900 / 2100 – A1522 (CDMA), A1524
	3G bands	HSDPA 850 / 900 / 1700 / 1900 / 2100 – A1522 (GSM), A1522 (CDMA), A1524
		CDMA2000 1xEV-DO – A1522 (CDMA), A1524
		TD-SCDMA 1900 / 2000 – A1524
	4G bands	LTE 700/800/850/900/1700/1800/1900/2100/2600 (1/2/3/4/5/7/8/13/17/18/19/20/25/26/28/29) – A1522 (GSM), A1522 (CDMA)
		LTE 700/800/850/900/1800/1900/2100/2600 TD-LTE 1900/2300/2500/2600 (1/2/3/4/5/7/8/13/17/18/19/20/25/26/28/29/38/39/40/41) – A1524
	Speed	HSPA 42.2/5.76 Mbps, LTE Cat4 150/50 Mbps, EV-DO Rev.A 3.1 Mbps
	GPRS	Yes
	EDGE	Yes

Launch	Announced	2014, September
Launch	Status	Available. Released 2014, September

Body	Dimensions	158.1 x 77.8 x 7.1 mm (6.22 x 3.06 x 0.28 in)
	Weight	172 g (6.07 oz)
	SIM	Nano-SIM
		– Fingerprint sensor (Touch ID) – Apple Pay (Visa, MasterCard, AMEX certified)

Display	Type	LED-backlit IPS LCD, capacitive touchscreen, 16M colors
	Size	1080 x 1920 pixels, 5.5 inches (~401 ppi pixel density)
	Multitouch	Yes
	Protection	Shatter proof glass, oleophobic coating
		– Display Zoom

Platform	OS	iOS 8, upgradable to iOS 8.1.2
	Chipset	Apple A8
	CPU	Dual-core 1.4 GHz Cyclone (ARM v8-based)
	GPU	PowerVR GX6450 (quad-core graphics)

Memory	Card slot	No
	Internal	16/64/128 GB, 1 GB RAM

Camera	Primary	8 MP, 3264 x 2448 pixels, optical image stabilization, phase detection autofocus, dual-LED (dual tone) flash, check quality
	Features	1/3” sensor size, 1.5?m pixel size, geo-tagging, simultaneous HD video and image recording, touch focus, face/smile detection, HDR (photo/panorama)
	Video	1080p@60fps, 720p@240fps, optical stabilization, check quality
	Secondary	1.2 MP, 720p@30fps, face detection, HDR, FaceTime over Wi-Fi or Cellular

Sound	Alert types	Vibration, proprietary ringtones
	Loudspeaker	Yes
	3.5mm jack	Yes

Comms	WLAN	Wi-Fi 802.11 a/b/g/n/ac, dual-band, hotspot
	Bluetooth	v4.0, A2DP, LE
	GPS	Yes, with A-GPS, GLONASS
	NFC	Yes (Apple Pay only)
	Radio	No
	USB	v2.0, reversible connector

Features	Sensors	Accelerometer, gyro, proximity, compass, barometer
	Messaging	iMessage, SMS (threaded view), MMS, Email, Push Email
	Browser	HTML5 (Safari)
	Java	No
		– Active noise cancellation with dedicated mic – Siri natural language commands and dictation – iCloud cloud service – iCloud Keychain – TV-out – Maps – iBooks PDF reader – Audio/video player/editor – Organizer – Document viewer/editor – Photo viewer/editor – Voice memo/dial/command – Predictive text input

Battery		Non-removable Li-Po 2915 mAh battery (11.1 Wh)
	Stand-by	Up to 384 h (3G)
	Talk time	Up to 24 h (3G)
	Music play	Up to 80 h

Misc	Colors	Space Gray, Silver, Gold
	SAR US	1.19 W/kg (head) 1.19 W/kg (body)
	SAR EU	0.99 W/kg (head) 0.91 W/kg (body)
	Price group

Tests	Performance	Basemark OS II: 1222
	Display	Contrast ratio: 1361 (nominal), 3.023 (sunlight)
	Camera	Photo / Video
	Loudspeaker	Voice 67dB / Noise 65dB / Ring 66dB
	Audio quality	Noise -94dB / Crosstalk -72dB
	Battery life	Endurance rating 79h
