Apple iPhone 15 Pro Max Radiation Levels
Head SAR
Head SAR
Apple iPhone 15 Pro Max SAR Level Summary: SAR values for the Apple iPhone 15 Pro Max (FCC ID BCG-E8440A) are 1.07 W/kg (watts per kilogram) at the head and 1.11 W/kg when worn on the body . The hotspot/Airplay SAR level is 1.11 W/kg . The simultaneous transmission SAR values for iPhone 15 Pro Max (cellular plus Wi-Fi) is 1.43 W/kg at the head , 1.48 W/kg when worn on the body , and 1.48 W/kg when used as a hotspot simultaneously with other transmitters active.
Select a Spec Group General Display Camera Battery Hardware Connectivity Sound Design Network
View Thermal Visualization Select SAR Test Position Head SAR Body SAR
Apple iPhone 15 Pro Max Safety Tip: Turning Off Wi-Fi and Bluetooth Reduces Radiation. This SAR chart reveals how turning off Wi-Fi and Bluetooth on your Apple iPhone 15 Pro Max can significantly reduce your exposure to radiation. Our SAR comparison chart shows that by simply turning off these transmitters, you can lower the RF radiation exposure to your head by 25.1% , and you can lower exposure to the body by 24.9% , when considering these differences between cellular-only (Wi-Fi/Bluetooth OFF) and simultaneous use exposure (Wi-Fi/Bluetooth ON) , a wise way to reduce excessive phone radiation is to tap off unnecessary transmitters when not in use. Additionally, when using your phone as a hotspot, turning off Bluetooth can reduce your exposure by up to 33.2% according to the FCC SAR report for device number BCG-E8440A.
Comparison of SAR levels between cellular-only and simultaneous exposure RADIATION LEVELS CELLULAR ONLY (% DIFF) SIMULTANEOUS HEAD 1.071 W/kg 25.1% 1.430 W/kg BODY 1.109 W/kg 24.9% 1.477 W/kg HOTSPOT 1.109 W/kg 33.2% 1.477 W/kg
The Specific Absorption Rate (SAR) of a mobile device measures the amount of radio frequency energy absorbed by the body during device usage.
The SAR values for the iphone-15-pro-max (FCC ID BCG-E8440A) are as follows:
1.07 W/kg when held at the head with cellular transmission only 1.11 W/kg when worn on the body with cellular transmission only 1.11 W/kg when used as a Hotspot or Airplay 1.43 W/kg when held at the head with simultaneous cellular and Wi-Fi transmission 1.48 W/kg when worn on the body with simultaneous cellular and Wi-Fi transmission 1.48 when used as a Hotspot simultaneously with other transmitters active.
Apple iPhone 15 Pro Max - SAR Levels
FCC SAR Levels
FCC Approval Date This is the date the phone SAR test was completed before the phone's release to the public as required by law. 05 September 2023
FCC ID The FCC ID is the code used to register a device for FCC compliance BCG-E8440A
FCC Report Link A direct link to the FCC's website for confirming SAR levels that are listed on our website - We did the homework for you!
Head SAR Level SAR test when held against your head when only using cellular service. Wifi and other transmitter are NOT active 1.071 W/kg
Body SAR Level SAR test when held against your body only using cellular service. Wifi and other transmitter are NOT active 1.109 W/kg
Product Specific Use SAR test when held against your body only using the phone as a hotspot. Cellular and other transmitter are NOT active 1.109 W/kg
Simultaneous Transmission The highest possible SAR recorded with ALL transmitters active, Cellular, WiFi, and Hotspot 1.477 W/kg
Simultaneous Head The highest possible SAR test when held against your HEAD with cellular and WiFi transmitters active, 1.430 W/kg
Simultaneous Body The highest possible SAR test when held against your BODY with cellular and WiFi transmitters active, 1.477 W/kg
Hotspot SAR The highest possible SAR test when held against your BODY using the phone as a hotspot with cellular and WiFi transmitters active, 1.477 W/kg
Applicant Name APPLE INC. FCC ID BCG-E8440A Model Name A3105
Unofficial preliminary specifications
Network Technology GSM / CDMA / HSPA / EVDO / LTE / 5G 2G bands GSM 850 / 900 / 1800 / 1900 – SIM 1 & SIM 2 (dual-SIM) CDMA 800 / 1900 3G bands HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100 CDMA2000 1xEV-DO 4G bands LTE 5G bands SA/NSA/Sub6 – International SA/NSA/Sub6/mmWave – USA Speed HSPA, LTE-A, 5G, EV-DO Rev.A 3.1 Mbps
Launch Announced Expected announcement 2023, September 12 Status Rumored. Exp. release 2023, September
Body Dimensions – Weight – Build Glass front (Corning-made glass), glass back (Corning-made glass), titanium frame SIM Nano-SIM and eSIM – International IP68 dust/water resistant (up to 6m for 30 min) ||| Apple Pay (Visa, MasterCard, AMEX certified)
Display Type LTPO Super Retina XDR OLED, 120Hz, HDR10, Dolby Vision Size 6.7 inches, 110.2 cm2 Resolution 1290 x 2796 pixels, 19.5:9 ratio (~460 ppi density) Protection Ceramic Shield glass Always-On display
Platform OS iOS 17 Chipset Apple A17 Bionic (3 nm) CPU Hexa-core GPU Apple GPU (6-core graphics)
Memory Card slot No Internal 256GB, 512GB, 1TB NVMe
Main Camera Triple 48 MP, f/1.8, 24mm (wide), 1/1.28″, 1.22m, dual pixel PDAF, sensor-shift OIS ||| 12.7 MP, f/2.8, 85mm (periscope telephoto), 1/1.9″, PDAF, OIS, 4x optical zoom ||| 13.4 MP, f/2.2, 13mm, 120 (ultrawide), dual pixel PDAF ||| TOF 3D LiDAR scanner (depth) Features Dual-LED dual-tone flash, HDR (photo/panorama) Video 4K@24/25/30/60fps, 1080p@25/30/60/120/240fps, 10-bit HDR, Dolby Vision HDR (up to 60fps), ProRes, Cinematic mode (4K@24/30fps), stereo sound rec.
Selfie camera Single 12 MP, f/1.9, 23mm (wide), 1/3.6″, PDAF, OIS ||| SL 3D, (depth/biometrics sensor) Features HDR, Cinematic mode (4K@24/30fps) Video 4K@24/25/30/60fps, 1080p@25/30/60/120fps, gyro-EIS
Sound Loudspeaker Yes, with stereo speakers 3.5mm jack No
Comms WLAN Wi-Fi 802.11 a/b/g/n/ac/6e/7, dual-band, hotspot Bluetooth 5.3, A2DP, LE Positioning GPS (L1+L5), GLONASS, GALILEO, BDS, QZSS NFC Yes Radio No USB USB Type-C 3.2, DisplayPort
Features Sensors Face ID, accelerometer, gyro, proximity, compass, barometer Ultra Wideband (UWB) support ||| Emergency SOS via satellite (SMS sending/receiving)
Battery Type Li-Ion 4852 mAh, non-removable Charging 30W wired, PD3.0 ||| 15W wireless (MagSafe) ||| 7.5W wireless (Qi)
Misc Colors Space Black, Silver, Gold, Deep Purple
Apple iPhone 15 Pro Max - QuantaCase™

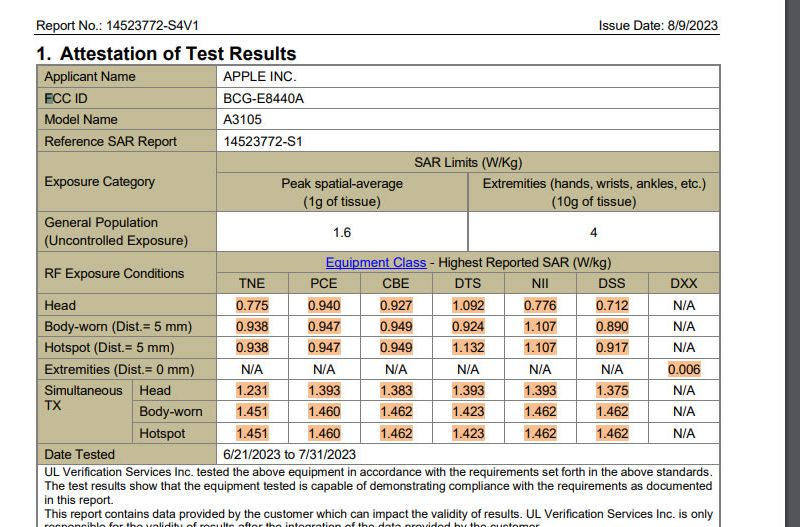

Apple iPhone 15 Pro Max - FCC SAR Report Image
