Samsung Galaxy Grand 2 Radiation Levels

Head SAR

Add to Compare Compare

Add to Compare Compare

SAR Levels
Overview
QuantaCase™
FCC SAR Report Image

Samsung Galaxy Grand 2 - SAR Levels

FCC SAR Levels

FCC Approval Date This is the date the phone SAR test was completed before the phone's release to the public as required by law.
23 November 2013
US SAR Ratings USA Legal Limit is 1.6 W/kg
USA Legal Limit is 1.6 W/kg - FCC SAR testing is measured in watts per kilogram (or W/kg) averaged over ONE gram of simulated biological tissue.
Head SAR Level SAR test when held against your head when only using cellular service. Wifi and other transmitter are NOT active
0.58
Body SAR Level SAR test when held against your body only using cellular service. Wifi and other transmitter are NOT active
1.03
Product Specific Use SAR test when held against your body only using the phone as a hotspot. Cellular and other transmitter are NOT active
N/A
Simultaneous Transmission The highest possible SAR recorded with ALL transmitters active, Cellular, WiFi, and Hotspot
N/A
Simultaneous Head The highest possible SAR test when held against your HEAD with cellular and WiFi transmitters active,
N/A
Simultaneous Body The highest possible SAR test when held against your BODY with cellular and WiFi transmitters active,
N/A
Hotspot SAR The highest possible SAR test when held against your BODY using the phone as a hotspot with cellular and WiFi transmitters active,
N/A

EU SAR Level

EU SAR Ratings
European Legal Limit is 2.0 W/kg - EU SAR testing is measured in watts per kilogram (or W/kg) averaged over TEN grams of simulated biological tissue.
Head SAR Level
N/A
Body SAR Level
N/A

Available as:
– Samsung Galaxy Grand 2 SM-G7102 with dual SIM card slots
– Samsung Galaxy Grand 2 SM-G7105 with LTE network support

Network	Technology	GSM / HSPA / LTE
	2G bands	GSM 850 / 900 / 1800 / 1900 – SM-G7100
		GSM 850 / 900 / 1800 / 1900 – SM-G7102 (SIM 1 & SIM 2)
	3G bands	HSDPA 850 / 900 / 1900 / 2100
	4G bands	LTE 800 / 850 / 900 / 1800 / 2100 / 2600 – SM-G7105
	Speed	HSPA 42.2/21/5.76 Mbps (region dependent)/ LTE Cat3 100/50 Mbps (SM-G7105)
	GPRS	Yes
	EDGE	Yes

Launch	Announced	2013, November
Launch	Status	Available. Released 2014, January

Body	Dimensions	146.8 x 75.3 x 8.9 mm (5.78 x 2.96 x 0.35 in)
	Weight	163 g (5.75 oz)
	SIM	Optional Dual SIM (Micro-SIM, dual stand-by)

Display	Type	TFT capacitive touchscreen, 16M colors
	Size	720 x 1280 pixels, 5.25 inches (~280 ppi pixel density)
	Multitouch	Yes

Platform	OS	Android OS, v4.3 (Jelly Bean), upgradable to v4.4.2 (KitKat)
	Chipset	Qualcomm MSM8226 Snapdragon 400
	CPU	Quad-core 1.2 GHz Cortex-A7
	GPU	Adreno 305

Memory	Card slot	microSD, up to 64 GB
	Internal	8 GB, 1.5 GB RAM

Camera	Primary	8 MP, 3264 x 2448 pixels, autofocus, LED flash, check quality
	Features	Geo-tagging, touch focus, face/smile detection
	Video	1080p@30fps, stereo sound rec., check quality
	Secondary	1.9 MP

Sound	Alert types	Vibration; MP3, WAV ringtones
	Loudspeaker	Yes
	3.5mm jack	Yes

Comms	WLAN	Wi-Fi 802.11 a/b/g/n, dual-band, Wi-Fi Direct, DLNA, hotspot
	Bluetooth	v4.0, A2DP, EDR, LE
	GPS	Yes, with A-GPS, GLONASS
	Radio	FM radio
	USB	microUSB v2.0

Features	Sensors	Accelerometer, proximity, compass
	Messaging	SMS(threaded view), MMS, Email, Push Mail, IM
	Browser	HTML5
	Java	Yes, via Java MIDP emulator
		– MP4/WMV/H.264 player – MP3/WAV/eAAC+/FLAC player – Photo/video editor – Document viewer

Battery		Li-Ion 2600 mAh battery
	Stand-by	Up to 370 h (3G)
	Talk time	Up to 17 h (3G)

Misc	Colors	Black, White, Pink
	SAR US	0.58 W/kg (head) 1.03 W/kg (body)
	SAR EU	0.44 W/kg (head) 0.44 W/kg (body)
	Price group

Tests	Performance	Basemark OS II: 275
	Display	Contrast ratio: 813:1 (nominal), 1.380 (sunlight)
	Camera	Photo / Video
	Loudspeaker	Voice 66dB / Noise 66dB / Ring 75dB
	Battery life	Endurance rating 45h

Samsung Galaxy Grand 2 - QuantaCase™

Samsung Galaxy Grand 2 - FCC SAR Report Image

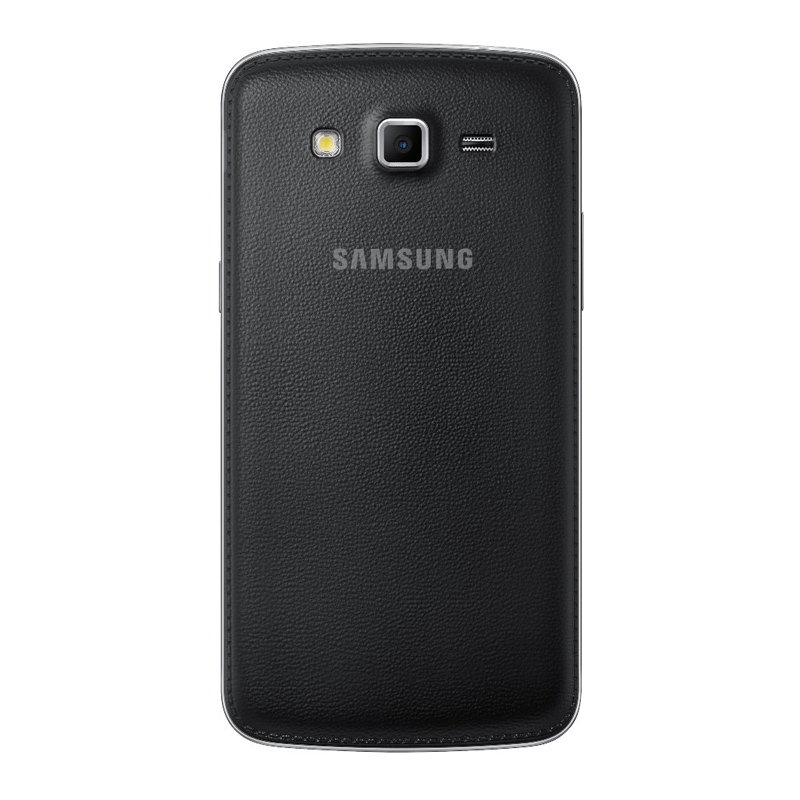

Samsung Galaxy Grand 2 - Back

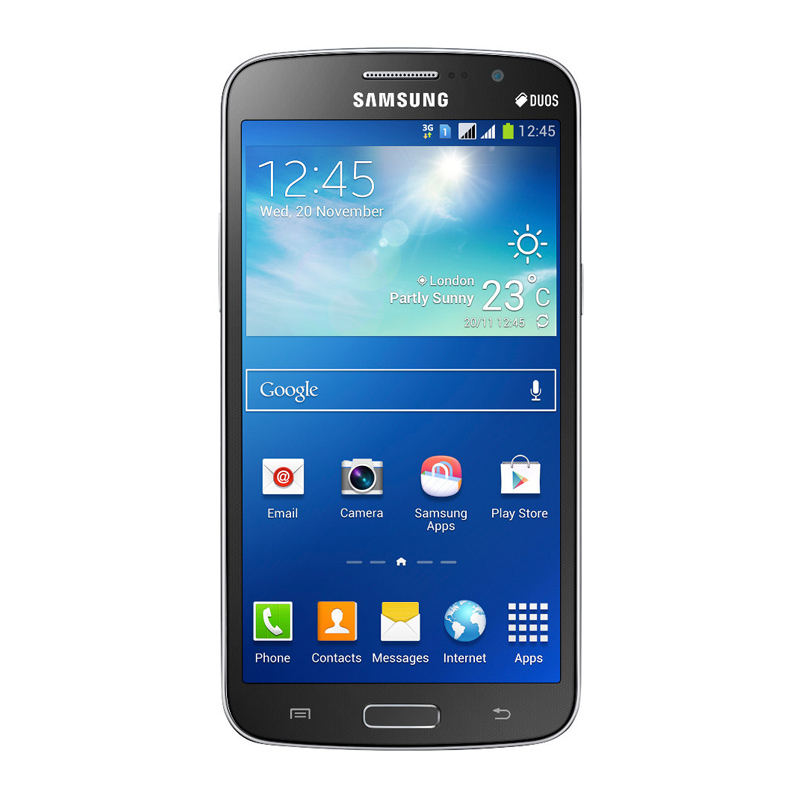

Samsung Galaxy Grand 2

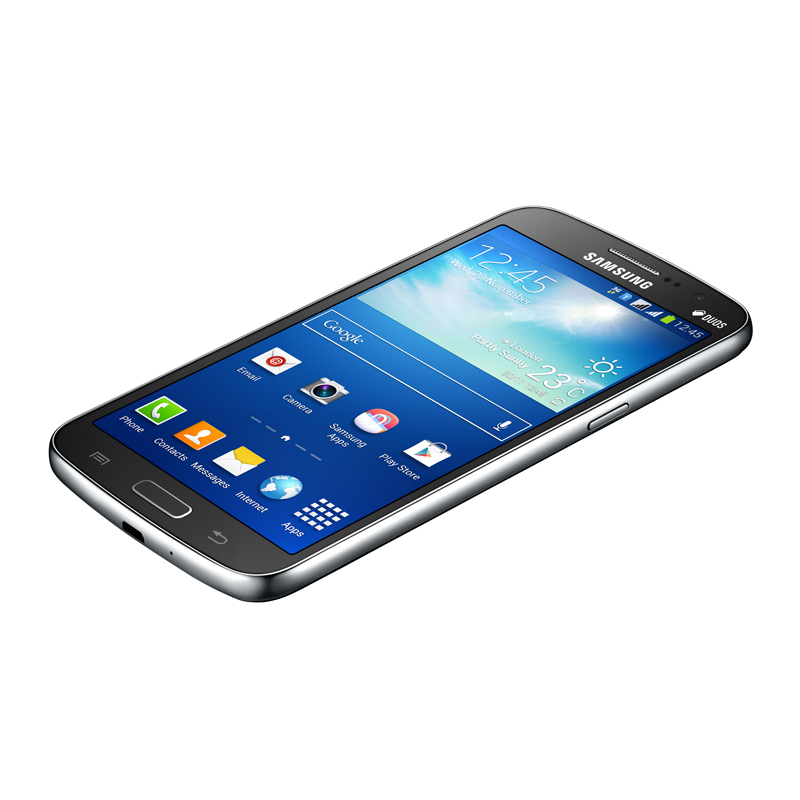

Samsung Galaxy Grand 2 - Perspective
