Google Pixel 7a Radiation Levels

Head SAR
Head SAR
1.2 W/kg which is Ranked #47 at 75.00% of Legal Limit
More Info:
Radiation LevelsHEAD (1g)BODY (1g)HOTSPOT (1g)
Cellular Only1.2 W/kg0.95 W/kg0.99 W/kg
Simultaneous1.58 W/kg1.58 W/kg1.59 W/kg







Google Pixel 7a SAR Level Summary:

The cellular transmission SAR values for the Google Pixel 7a (FCC ID A4RGHL1X) are 1.20 W/kg (watts per kilogram) at the head and 0.95 W/kg when worn on the body. The hotspot/Airplay SAR level is 0.99 W/kg. The simultaneous transmission SAR values for Pixel 7a (cellular plus Wi-Fi) is 1.58 W/kg at the head, 1.58 W/kg when worn on the body, and 1.59 W/kg when used as a hotspot simultaneously with other transmitters active.










Google Pixel 7a Safety Tip: Turning Off Wi-Fi and Bluetooth Reduces Radiation.

This SAR chart reveals how turning off Wi-Fi and Bluetooth on your Google Pixel 7a can significantly reduce your exposure to radiation. Our SAR comparison chart shows that by simply turning off these transmitters, you can lower the RF radiation exposure to your head by 24.1%, and you can lower exposure to the body by 39.9%, when considering these differences between cellular-only (Wi-Fi/Bluetooth OFF) and simultaneous use exposure (Wi-Fi/Bluetooth ON), a wise way to reduce excessive phone radiation is to tap off unnecessary transmitters when not in use. Additionally, when using your phone as a hotspot, turning off Bluetooth can reduce your exposure by up to 60.6% according to the FCC SAR report for device number A4RGHL1X.

Google Pixel 7a SAR Levels

Comparison of SAR levels between cellular-only and simultaneous exposure
RADIATION LEVELSCELLULAR ONLY(% DIFF)SIMULTANEOUS
HEAD1.20 W/kg24.1%1.58 W/kg
BODY0.95 W/kg39.9%1.58 W/kg
HOTSPOT0.99 W/kg60.6%1.59 W/kg

The Specific Absorption Rate (SAR) of a mobile device measures the amount of radio frequency energy absorbed by the body during device usage.

The SAR values for the pixel-7a (FCC ID A4RGHL1X) are as follows:

  • 1.2 W/kg when held at the head with cellular transmission only
  • 0.95 W/kg when worn on the body with cellular transmission only
  • 0.99 W/kg when used as a Hotspot or Airplay
  • 1.58 W/kg when held at the head with simultaneous cellular and Wi-Fi transmission
  • 1.58 W/kg when worn on the body with simultaneous cellular and Wi-Fi transmission
  • 1.59 when used as a Hotspot simultaneously with other transmitters active.

Google Pixel 7a - SAR Levels

FCC SAR Levels

  • FCC Approval Date This is the date the phone SAR test was completed before the phone's release to the public as required by law.
    03 May 2023
  • FCC ID The FCC ID is the code used to register a device for FCC compliance
    A4RGHL1X

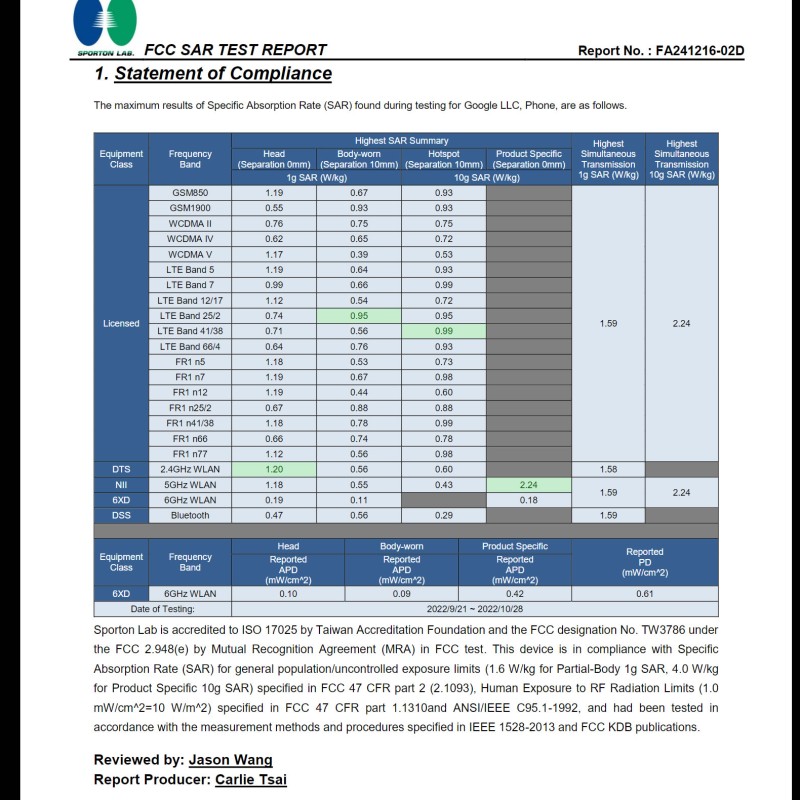

  • FCC Report Link A direct link to the FCC's website for confirming SAR levels that are listed on our website - We did the homework for you!
  • Head SAR Level SAR test when held against your head when only using cellular service. Wifi and other transmitter are NOT active
    1.20 W/kg
  • Body SAR Level SAR test when held against your body only using cellular service. Wifi and other transmitter are NOT active
    0.95 W/kg
  • Product Specific Use SAR test when held against your body only using the phone as a hotspot. Cellular and other transmitter are NOT active
    0.99 W/kg
  • Simultaneous Transmission The highest possible SAR recorded with ALL transmitters active, Cellular, WiFi, and Hotspot
    1.59 W/kg
  • Simultaneous Head The highest possible SAR test when held against your HEAD with cellular and WiFi transmitters active,
    1.58 W/kg
  • Simultaneous Body The highest possible SAR test when held against your BODY with cellular and WiFi transmitters active,
    1.58 W/kg
  • Hotspot SAR The highest possible SAR test when held against your BODY using the phone as a hotspot with cellular and WiFi transmitters active,
    1.59 W/kg



Network Technology GSM / HSPA / 5G
2G bands GSM 850 / 900 / 1800 / 1900
3G bands HSDPA 800 / 850 / 900 / 1700(AWS) / 1900 / 2100
5G bands SA/NSA/Sub6 – International
SA/NSA/Sub6/mmWave – USA
Speed HSPA, LTE-A (CA), 5G
Launch Announced Expected announcement 2023, June
Status Rumored. Exp. release 2023, June
Body Dimensions
Weight
Build Glass front (Gorilla Glass), aluminum frame, plastic back
SIM Nano-SIM and eSIM
IP67 dust/water resistant (up to 1m for 30 min)
Display Type OLED, HDR, 90Hz
Size 6.1 inches, 89.8 cm2
Resolution 1080 x 2400 pixels, 20:9 ratio (~431 ppi density)
Protection Corning Gorilla Glass
Always-on display
Platform OS Android 13
Chipset Google Tensor G2 (5 nm)
CPU Octa-core (2×2.85 GHz Cortex-X1 & 2×2.35 GHz Cortex-A78 & 4×1.80 GHz Cortex-A55)
GPU Mali-G710 MP7
Memory Card slot No
Internal 128GB 6GB RAM
UFS 3.1
Main Camera Dual 64 MP, (wide), 1/1.3″, 1.0m, PDAF, OIS ||| 12 MP, f/2.2, 17mm, 114 (ultrawide), 1.25m
Features Dual-LED flash, Pixel Shift, Auto-HDR, panorama
Video 4K@30/60fps, 1080p@30/60/120/240fps; gyro-EIS, OIS
Selfie camera Single 8 MP, f/2.0, 24mm (wide), 1.12m
Features Auto-HDR, panorama
Video 1080p@30fps
Sound Loudspeaker Yes, with stereo speakers
3.5mm jack No
Comms WLAN Wi-Fi 802.11 a/b/g/n/ac/6e, dual-band, Wi-Fi Direct
Bluetooth 5.2, A2DP, LE
Positioning GPS, GLONASS, GALILEO, QZSS
NFC Yes
Radio No
USB USB Type-C 3.1
Features Sensors Fingerprint (under display, optical), accelerometer, gyro, proximity, compass, barometer
Battery Type Li-Po 4500 mAh, non-removable
Charging 18W wired, PD3.0
Misc Colors Arctic Blue, Carbon, Cotton
