Apple iPhone 12 Pro Max Radiation Levels
Head SAR1.17 W/kg which is Ranked #70 at 73.13% of Legal Limit
Radiation Levels | HEAD (1g) | BODY (1g) | HOTSPOT (1g) |
---|---|---|---|
Cellular Only | 1.17 W/kg | 1.19 W/kg | 1.19 W/kg |
Simultaneous | 1.39 W/kg | 1.57 W/kg | 1.57 W/kg |
Apple iPhone 12 Pro Max SAR Level Summary:
The cellular transmission SAR values for the Apple iPhone 12 Pro Max (FCC ID BCG-E3548A) are 1.17 W/kg (watts per kilogram) at the head and 1.19 W/kg when worn on the body. The hotspot/Airplay SAR level is 1.19 W/kg. The simultaneous transmission SAR values for iPhone 12 Pro Max (cellular plus Wi-Fi) is 1.39 W/kg at the head, 1.57 W/kg when worn on the body, and 1.57 W/kg when used as a hotspot simultaneously with other transmitters active.
View Thermal Visualization
Apple iPhone 12 Pro Max Safety Tip: Turning Off Wi-Fi and Bluetooth Reduces Radiation.
This SAR chart reveals how turning off Wi-Fi and Bluetooth on your Apple iPhone 12 Pro Max can significantly reduce your exposure to radiation. Our SAR comparison chart shows that by simply turning off these transmitters, you can lower the RF radiation exposure to your head by 16%, and you can lower exposure to the body by 24.2%, when considering these differences between cellular-only (Wi-Fi/Bluetooth OFF) and simultaneous use exposure (Wi-Fi/Bluetooth ON), a wise way to reduce excessive phone radiation is to tap off unnecessary transmitters when not in use. Additionally, when using your phone as a hotspot, turning off Bluetooth can reduce your exposure by up to 31.9% according to the FCC SAR report for device number BCG-E3548A.
Apple iPhone 12 Pro Max SAR Levels
RADIATION LEVELS | CELLULAR ONLY | (% DIFF) | SIMULTANEOUS |
---|---|---|---|
HEAD | 1.167 W/kg | 16% | 1.390 W/kg |
BODY | 1.193 W/kg | 24.2% | 1.574 W/kg |
HOTSPOT | 1.193 W/kg | 31.9% | 1.574 W/kg |
The Specific Absorption Rate (SAR) of a mobile device measures the amount of radio frequency energy absorbed by the body during device usage.
The SAR values for the iphone-12-pro-max (FCC ID BCG-E3548A) are as follows:
- 1.17 W/kg when held at the head with cellular transmission only
- 1.19 W/kg when worn on the body with cellular transmission only
- 1.19 W/kg when used as a Hotspot or Airplay
- 1.39 W/kg when held at the head with simultaneous cellular and Wi-Fi transmission
- 1.57 W/kg when worn on the body with simultaneous cellular and Wi-Fi transmission
- 1.57 when used as a Hotspot simultaneously with other transmitters active.
Apple iPhone 12 Pro Max - SAR Levels
FCC SAR Levels
-
FCC Approval Date
This is the date the phone SAR test was completed before the phone's release to the public as required by law. 20 October 2020
-
FCC ID
The FCC ID is the code used to register a device for FCC compliance BCG-E3548A

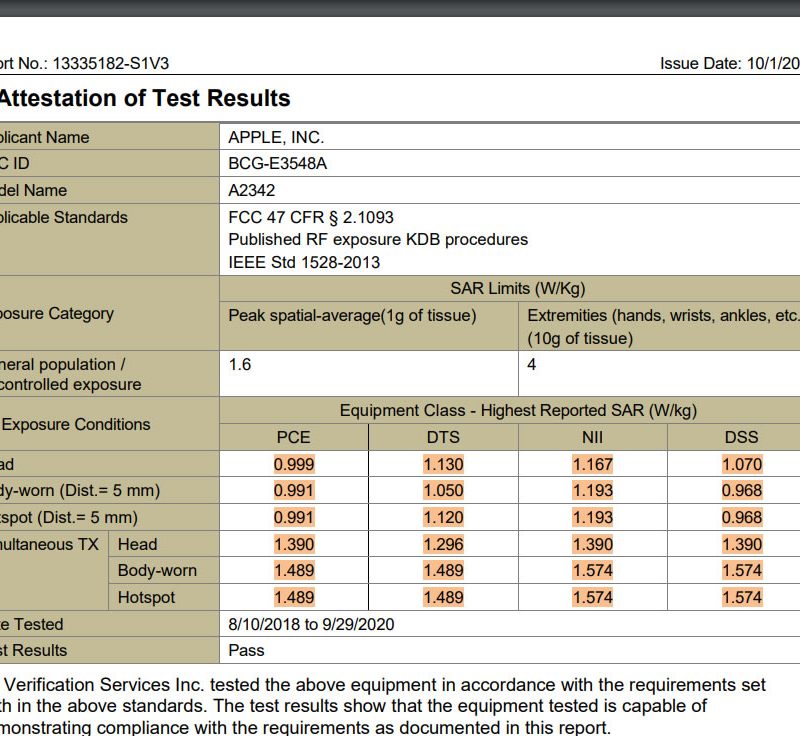

- FCC Report Link A direct link to the FCC's website for confirming SAR levels that are listed on our website - We did the homework for you!
-
US SAR Ratings
USA Legal Limit is 1.6 W/kg USA Legal Limit is 1.6 W/kg - FCC SAR testing is measured in watts per kilogram (or W/kg) averaged over ONE gram of simulated biological tissue.
-
Head SAR Level
SAR test when held against your head when only using cellular service. Wifi and other transmitter are NOT active 1.167 W/kg
-
Body SAR Level
SAR test when held against your body only using cellular service. Wifi and other transmitter are NOT active 1.193 W/kg
-
Product Specific Use
SAR test when held against your body only using the phone as a hotspot. Cellular and other transmitter are NOT active 1.193 W/kg
-
Simultaneous Transmission
The highest possible SAR recorded with ALL transmitters active, Cellular, WiFi, and Hotspot 1.574 W/kg
-
Simultaneous Head
The highest possible SAR test when held against your HEAD with cellular and WiFi transmitters active, 1.390 W/kg
-
Simultaneous Body
The highest possible SAR test when held against your BODY with cellular and WiFi transmitters active, 1.574 W/kg
-
Hotspot SAR
The highest possible SAR test when held against your BODY using the phone as a hotspot with cellular and WiFi transmitters active, 1.574 W/kg
EU SAR Level
-
EU SAR Ratings
European Legal Limit is 2.0 W/kg - EU SAR testing is measured in watts per kilogram (or W/kg) averaged over TEN grams of simulated biological tissue.
-
Head SAR Level
0.99 W/kg
-
Body SAR Level
0.99 W/kg
APPLE-IPHONE-12-Pro-MAX-SAR-Levels-bcg-e3548a
Versions: A2411 (International); A2342 (USA); A2410 (Canada, Japan); A2412 (China, Hong Kong)
Network | Technology | GSM / CDMA / HSPA / EVDO / LTE / 5G |
---|---|---|
2G bands | GSM 850 / 900 / 1800 / 1900 – SIM 1 & SIM 2 (dual-SIM) – for China | |
CDMA 800 / 1900 | ||
3G bands | HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100 | |
CDMA2000 1xEV-DO | ||
4G bands | 1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 18, 19, 20, 25, 26, 28, 29, 30, 32, 34, 38, 39, 40, 41, 42, 46, 48, 66, 71 – A2342 | |
1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 18, 19, 20, 25, 26, 28, 30, 32, 34, 38, 39, 40, 41, 42, 46, 48, 66 – A2411, A2412 | ||
1, 2, 3, 4, 5, 7, 8, 11, 12, 13, 14, 17, 18, 19, 20, 21, 25, 26, 28, 29, 30, 32, 34, 38, 39, 40, 41, 42, 46, 48, 66, 71 – A2410 | ||
5G bands | 1, 2, 3, 5, 7, 8, 12, 20, 25, 28, 38, 40, 41, 66, 71, 77, 78, 79, 260, 261 Sub6/mmWave – A2342 | |
1, 2, 3, 5, 7, 8, 12, 20, 25, 28, 38, 40, 41, 66, 77, 78, 79 Sub6 – A2410, A2411, A2412 | ||
Speed | HSPA 42.2/5.76 Mbps, LTE-A, 5G, EV-DO Rev.A 3.1 Mbps |
Launch | Announced | 2020, October 13 |
---|---|---|
Status | Available. Released 2020, November 13 |
Body | Dimensions | 160.8 x 78.1 x 7.4 mm (6.33 x 3.07 x 0.29 in) |
---|---|---|
Weight | 228 g (8.04 oz) | |
Build | Glass front (Gorilla Glass), glass back (Gorilla Glass), stainless steel frame | |
SIM | Single SIM (Nano-SIM and/or eSIM) or Dual SIM (Nano-SIM, dual stand-by) – for China | |
IP68 dust/water resistant (up to 6m for 30 mins) Apple Pay (Visa, MasterCard, AMEX certified) |
Display | Type | Super Retina XDR OLED, HDR10, 800 nits (typ), 1200 nits (peak) |
---|---|---|
Size | 6.7 inches, 109.8 cm2 (~87.4% screen-to-body ratio) | |
Resolution | 1284 x 2778 pixels, 19.5:9 ratio (~458 ppi density) | |
Protection | Scratch-resistant ceramic glass, oleophobic coating | |
Dolby Vision Wide color gamut True-tone |
Platform | OS | iOS 14.1, upgradable to iOS 14.2 |
---|---|---|
Chipset | Apple A14 Bionic (5 nm) | |
CPU | Hexa-core (2×3.1 GHz Firestorm + 4×1.8 GHz Icestorm) | |
GPU | Apple GPU (4-core graphics) |
Memory | Card slot | No |
---|---|---|
Internal | 128GB 6GB RAM, 256GB 6GB RAM, 512GB 6GB RAM | |
NVMe |
Main Camera | Quad | 12 MP, f/1.6, 26mm (wide), 1.7m, dual pixel PDAF, sensor-shift stabilization (IBIS) 12 MP, f/2.2, 65mm (telephoto), 1/3.4″, 1.0m, PDAF, OIS, 2.5x optical zoom 12 MP, f/2.4, 120, 13mm (ultrawide), 1/3.6″ TOF 3D LiDAR scanner (depth) |
---|---|---|
Features | Dual-LED dual-tone flash, HDR (photo/panorama) | |
Video | 4K@24/30/60fps, 1080p@30/60/120/240fps, 10bit HDR, Dolby Vision HDR (up to 60fps), stereo sound rec. |
Selfie camera | Dual | 12 MP, f/2.2, 23mm (wide), 1/3.6″ SL 3D, (depth/biometrics sensor) |
---|---|---|
Features | HDR | |
Video | 4K@24/30/60fps, 1080p@30/60/120fps, gyro-EIS |
Sound | Loudspeaker | Yes, with stereo speakers |
---|---|---|
3.5mm jack | No |
Comms | WLAN | Wi-Fi 802.11 a/b/g/n/ac/6, dual-band, hotspot |
---|---|---|
Bluetooth | 5.0, A2DP, LE | |
GPS | Yes, with A-GPS, GLONASS, GALILEO, QZSS | |
NFC | Yes | |
Radio | No | |
USB | Lightning, USB 2.0 |
Features | Sensors | Face ID, accelerometer, gyro, proximity, compass, barometer |
---|---|---|
Siri natural language commands and dictation |
Battery | Type | Li-Ion 3687 mAh, non-removable (14.13 Wh) |
---|---|---|
Charging | Fast charging 20W, 50% in 30 min (advertised) USB Power Delivery 2.0 Qi magnetic fast wireless charging 15W |
|
Stand-by | Up to 20 h (multimedia) | |
Music play | Up to 80 h |
Misc | Colors | Silver, Graphite, Gold, Pacific Blue |
---|---|---|
Models | A2411, A2342, A2410, A2412 | |
SAR EU | 0.99 W/kg (head) 0.99 W/kg (body) | |
Price | $ 1,099.00 / € 1,217.50 / £ 1,099.00 / ₹ 129,900 |
Tests | Performance | AnTuTu: 638584 (v8) GeekBench: 4240 (v5.1) GFXBench: 55fps (ES 3.1 onscreen) |
---|---|---|
Display | Contrast ratio: Infinite (nominal) | |
Camera | Photo / Video | |
Loudspeaker | -23.8 LUFS (Very good) | |
Battery life | Endurance rating 95h |
