Apple iPhone 11 Pro * RF SAFE® Radio Frequency Safe

Apple iPhone 11 Pro Radiation Levels

HEAD SAR LEVEL
1.15 W/kg
Ranked #60.00
(71.88% of limit)
BODY SAR LEVEL
1.15 W/kg
Ranked #59.00
(71.88% of limit)
Simultaneous Head SAR
1.42 W/kg
Ranked #35.00
(88.75% of limit)
Simultaneous Body SAR
1.48 W/kg
Ranked #28.00
(92.50% of limit)
Hotspot SAR Level
1.18 W/kg
Ranked #55.00
(73.75% of limit)
Simultaneous Hotspot
1.48 W/kg
Ranked #27.00
(92.50% of limit)

Apple iPhone 11 Pro SAR Level Summary: View Thermal Visualization
The cellular transmission SAR values for the Apple iPhone 11 Pro (FCC ID BCG-E3305A) are 1.15 W/kg (watts per kilogram) at the head and 1.15 W/kg when worn on the body. The hotspot/Airplay SAR level is 1.18 W/kg. The simultaneous transmission SAR values for (cellular plus Wi-Fi) is 1.42 W/kg at the head, 1.48 W/kg when worn on the body, and 1.48 W/kg when used as a hotspot simultaneously with other transmitters active.

SAR Levels
Overview
QuantaCase™

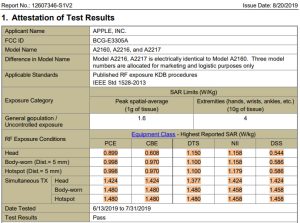

FCC SAR Report Image

Apple iPhone 11 Pro - SAR Levels

FCC SAR Levels

FCC Approval Date This is the date the phone SAR test was completed before the phone's release to the public as required by law.
20 August 2019
FCC ID The FCC ID is the code used to register a device for FCC compliance
BCG-E3305A
FCC Report Link A direct link to the FCC's website for confirming SAR levels that are listed on our website - We did the homework for you!
FCC Specific Absorption Rate (SAR) Report For Manufacturer Submitted Model
US SAR Ratings USA Legal Limit is 1.6 W/kg
USA Legal Limit is 1.6 W/kg - FCC SAR testing is measured in watts per kilogram (or W/kg) averaged over ONE gram of simulated biological tissue.
Head SAR Level SAR test when held against your head when only using cellular service. Wifi and other transmitter are NOT active
1.15 W/Kg
Body SAR Level SAR test when held against your body only using cellular service. Wifi and other transmitter are NOT active
1.15 W/Kg
Product Specific Use SAR test when held against your body only using the phone as a hotspot. Cellular and other transmitter are NOT active
1.18 W/kg
Simultaneous Transmission The highest possible SAR recorded with ALL transmitters active, Cellular, WiFi, and Hotspot
1.48 W/kg
Simultaneous Head The highest possible SAR test when held against your HEAD with cellular and WiFi transmitters active,
1.42 W/kg
Simultaneous Body The highest possible SAR test when held against your BODY with cellular and WiFi transmitters active,
1.48 W/kg
Hotspot SAR The highest possible SAR test when held against your BODY using the phone as a hotspot with cellular and WiFi transmitters active,
1.48 W/kg

EU SAR Level

EU SAR Ratings
European Legal Limit is 2.0 W/kg - EU SAR testing is measured in watts per kilogram (or W/kg) averaged over TEN grams of simulated biological tissue.
Head SAR Level
N/A
Body SAR Level
N/A

Apple iPhone 11 Pro SAR test reports filed with the Federal Communications Commission FCCID BCG-E3305A— the Specific Absorption Rate (SAR) Apple iPhone 11 Pro is Head: 1.15 watts per kilogram (w/kg) at your head, and 1.15 W/kg when worn on your body. The Apple iPhone 11 Pro hotspot SAR is 1.18 W/kg and its SAR for simultaneous transmission (cellular plus Wi-Fi) is 1.48 W/kg when used as a hotspot simultaneously with other transmitters active.

Versions:
A2216 (Global market)
A2160 (USA, Canada, Puerto Rico, U.S. Virgin Islands)
A2217 (China, Hong Kong)

Network	Technology	GSM / CDMA / HSPA / EVDO / LTE
	2G bands	GSM 850 / 900 / 1800 / 1900 – SIM 1 & SIM 2 (dual-SIM) – for China
		CDMA 800 / 1900
	3G bands	HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100
		CDMA2000 1xEV-DO
	4G bands	LTE band 1(2100), 2(1900), 3(1800), 4(1700/2100), 5(850), 7(2600), 8(900), 11(1500), 12(700), 13(700), 17(700), 18(800), 19(800), 20(800), 21(1500), 25(1900), 26(850), 28(700), 29(700), 30(2300), 32(1500), 34(2000), 38(2600), 39(1900), 40(2300), 41(2500), 42(3500), 46, 48, 66(1700/2100) – A2215
		LTE band 1(2100), 2(1900), 3(1800), 4(1700/2100), 5(850), 7(2600), 8(900), 12(700), 13(700), 14(700), 17(700), 18(800), 19(800), 20(800), 25(1900), 26(850), 29(700), 30(2300), 34(2000), 38(2600), 39(1900), 40(2300), 41(2500), 42(3500), 46, 48, 66(1700/2100), 71(600) – A2160
		LTE band 1(2100), 2(1900), 3(1800), 4(1700/2100), 5(850), 7(2600), 8(900), 12(700), 13(700), 14(700), 17(700), 18(800), 19(800), 20(800), 25(1900), 26(850), 29(700), 30(2300), 34(2000), 38(2600), 39(1900), 40(2300), 41(2500), 42(3500), 46, 48, 66(1700/2100), 71(600) – A2217
	Speed	HSPA 42.2/5.76 Mbps, LTE-A 1.6 Gbps DL, EV-DO Rev.A 3.1 Mbps

Launch	Announced	2019, September
Launch	Status	Coming soon. Exp. release 2019, September

Body	Dimensions	144 x 71.4 x 8.1 mm (5.67 x 2.81 x 0.32 in)
	Weight	188 g (6.63 oz)
	Build	Front/back glass, stainless steel frame
	SIM	Single SIM (Nano-SIM and/or Electronic SIM card) or Dual SIM (Nano-SIM, dual stand-by) – for China
		IP68 dust/water resistant (up to 4m for 30 mins) Apple Pay (Visa, MasterCard, AMEX certified)

Display	Type	Super Retina XDR OLED capacitive touchscreen, 16M colors
	Size	5.8 inches, 84.4 cm² (~82.1% screen-to-body ratio)
	Resolution	1125 x 2436 pixels, 19.5:9 ratio (~458 ppi density)
	Protection	Scratch-resistant glass, oleophobic coating
		800 nits Dolby Vision HDR10 Wide color gamut True-tone 120 Hz touch-sensing

Platform	OS	iOS 13
Platform	Chipset	Apple A13 Bionic (7 nm+)

Memory	Card slot	No
	Internal	64GB 4GB RAM, 256GB 4GB RAM, 512GB 4GB RAM

Main Camera	Triple	12 MP, f/1.8, 26mm (wide), 1/2.55″, 1.4m, PDAF, OIS 12 MP, f/2.0, 52mm (telephoto), 1/3.4″, 1.0m, PDAF, OIS, 2x optical zoom 12 MP, f/2.4, 13mm (ultrawide)
	Features	Quad-LED dual-tone flash, HDR (photo/panorama)
	Video	2160p@24/30/60fps, 1080p@30/60/120/240fps, HDR, stereo sound rec.

Selfie camera	Dual	12 MP, f/2.2 TOF 3D camera
	Features	HDR
	Video	2160p@24/30/60fps, 1080p@30/60/120fps, gyro-EIS

Sound	Loudspeaker	Yes, with stereo speakers
	3.5mm jack	No
		Active noise cancellation with dedicated mic Dolby Atmos Dolby Digital Plus

Comms	WLAN	Wi-Fi 802.11 a/b/g/n/ac/ax, dual-band, hotspot
	Bluetooth	5.0, A2DP, LE
	GPS	Yes, with A-GPS, GLONASS, GALILEO, QZSS
	NFC	Yes
	Radio	No
	USB	2.0, proprietary reversible connector

Features	Sensors	Face ID, accelerometer, gyro, proximity, compass, barometer
		Siri natural language commands and dictation

Battery		Non-removable Li-Ion 3190 mAh battery
	Charging	Fast battery charging 18W: 50% in 30 min USB Power Delivery 2.0 Qi wireless charging
	Talk time	Up to 18 h (multimedia)
	Music play	Up to 65 h
