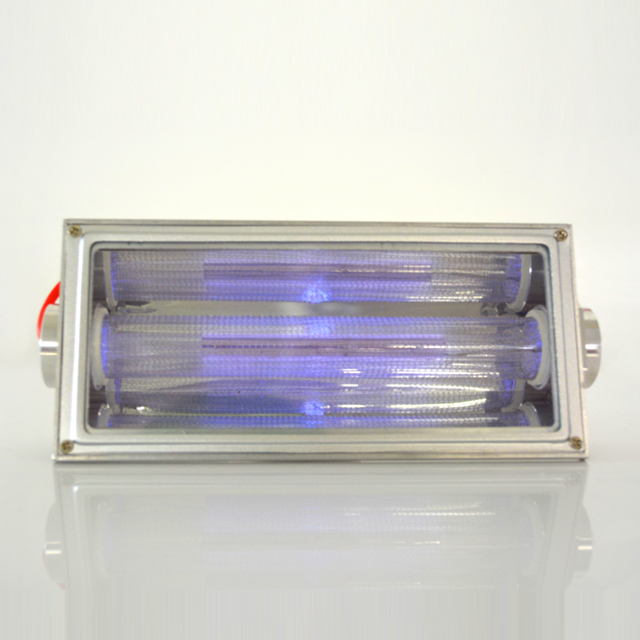

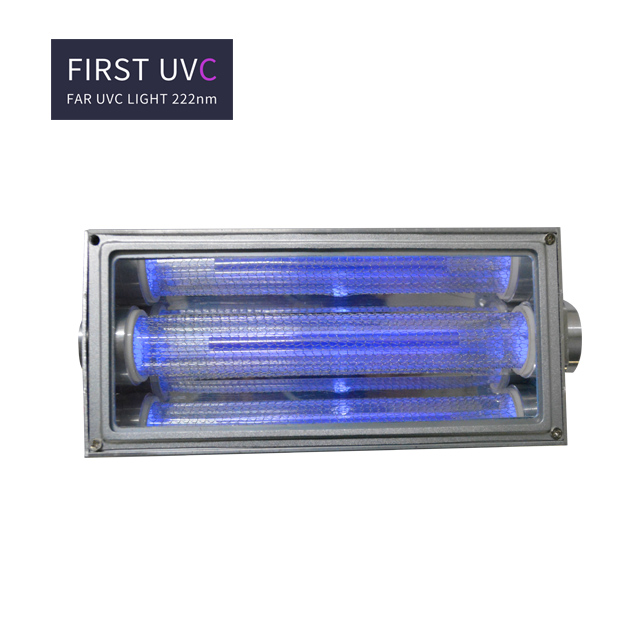

QuantaModule 15-Watt Far UVC Light Excimer Lamp Module Kit 24V DC 15w Far-UVC Light and Housing with 222nm Band Pass Filter

QuantaModule Open Source 15-Watt Far UV Excimer Module DC 24V Far-UVC Light Kit with 222nm Bandpass Flitter and Housing

An innovation of FAR-UVC, the Faruv.lighting FIRST UVC 222nm B-Series Open Source Module kit is a combination of Excimer lamp, optical band-pass filter with aluminum alloy housing where it was ideally designed and offered so anyone can then adapt and integrate Far-Uv with your own devices.

  1. ● Safety Filter technology (Narrowband 222nm Emission)
  2. ● ZERO Mercury – Environment Friendly
  3. ● Peak wavelength 222nm
  4. ● Minimal Ozone Emission
  5. ● 99% of viruses, bacteria, mold, and spores.
  6. ● Higher UV output

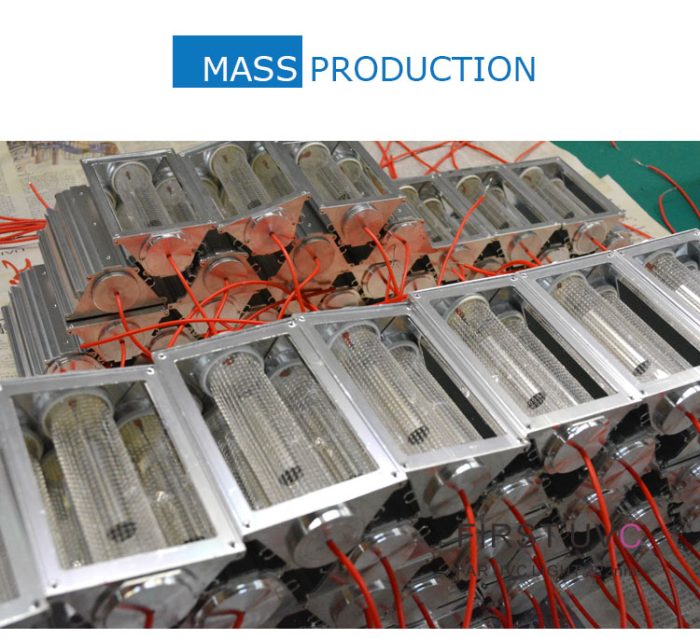

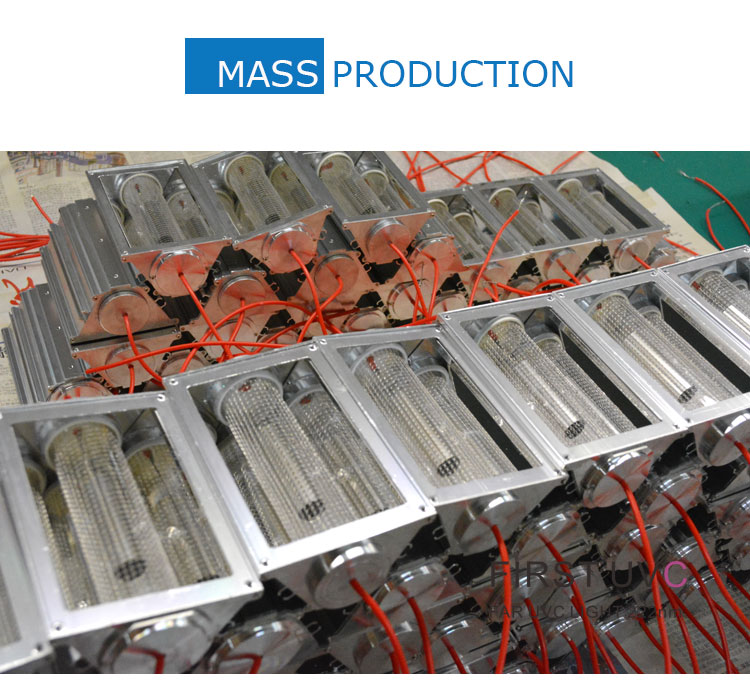

  7. ● Mass production Capacity ●

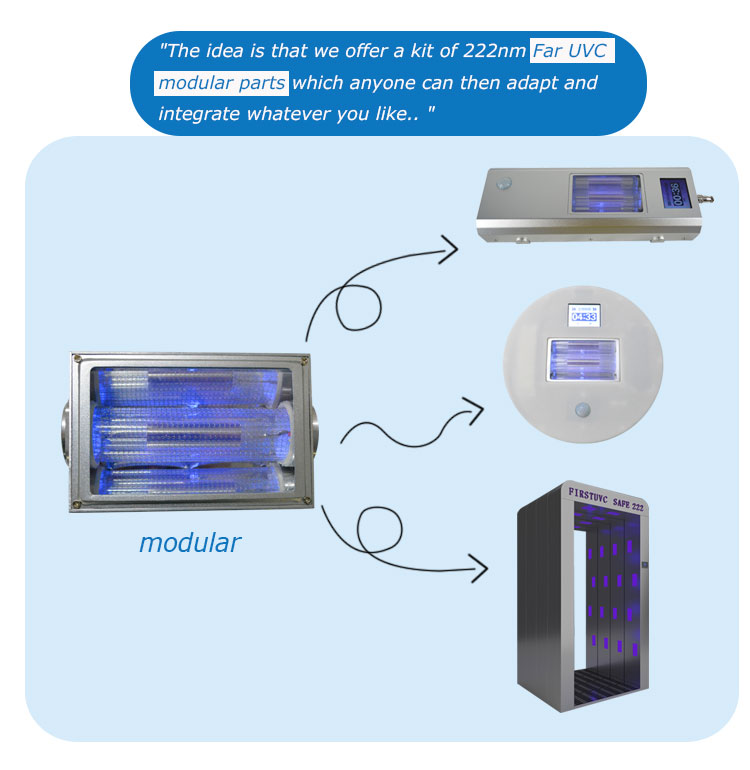

    The idea is that FIRSTUVC offers a kit of B-Series module “B1-5W / B2-15W / B3-20W” which anyone can then adapt and integrate whatever they like.

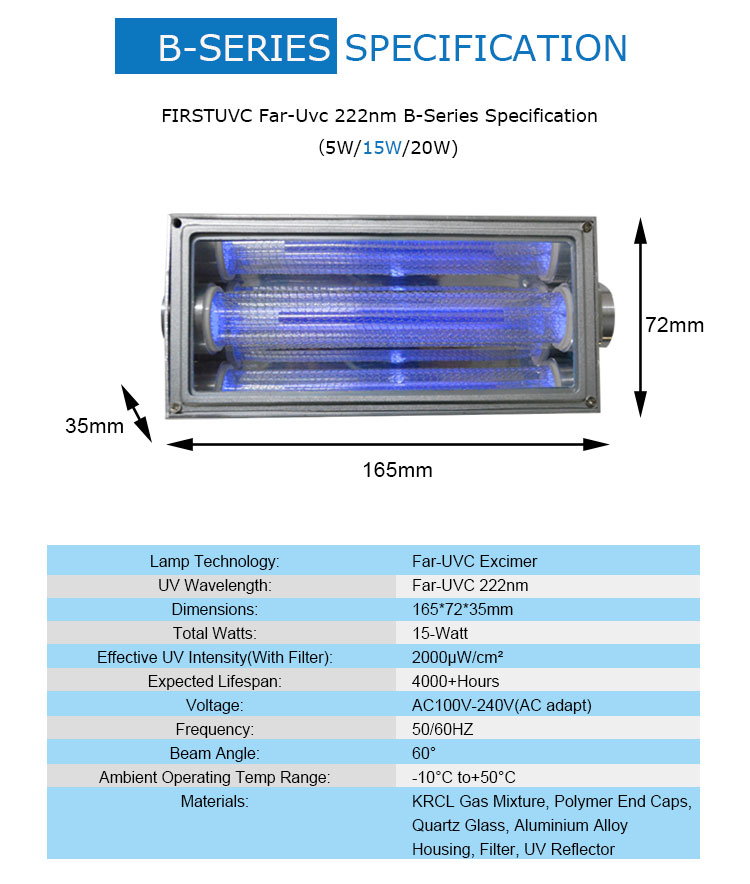

    Model –B1-5W / B2-15W / B3-20W

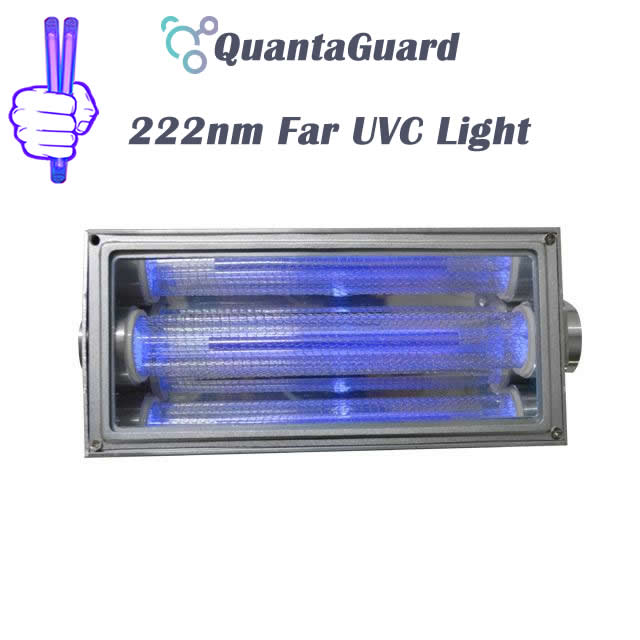

The featured B-Series module contains highly efficient 222nm Excimer lamps and a safety filter that eliminates dangerous longer wavelengths of more than 230nm.
The B-Series module feature is a powerful solution for occupied and unoccupied areas.
B-Series module equipped with an expected lifespan of 3,000-10,000 hours, the Excimer light emits a flood beam pattern and is replaceable.

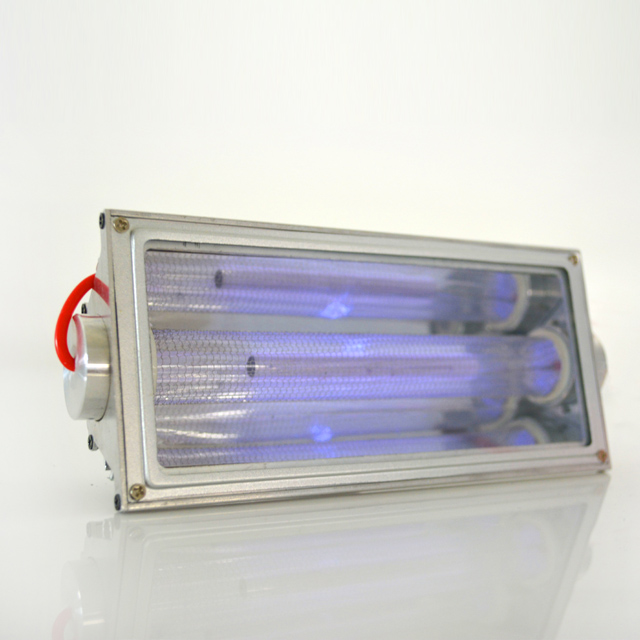

The housing on this unit is constructed of aluminum alloy for durability.

B-Series module being safe for use in occupied areas, instant-on power, mercury-free, higher UV output, and low heat output make Far-UVC Excimer lamps the preferred choice for UV sanitation and disinfecting applications

Free worldwide shipping on all orders over $100

  • Order yours before 12:30 pm for same-day dispatch M-F

Questions? Call or Text 727-610-1188

This FarUV Lighting product includes a custom-sized Band-Pass Filter required when using Excimer 15-watt 222nm Far-UVC light bulbs for AP-UVGI (Active Personnel Ultraviolet Germicidal Irradiation) applications.

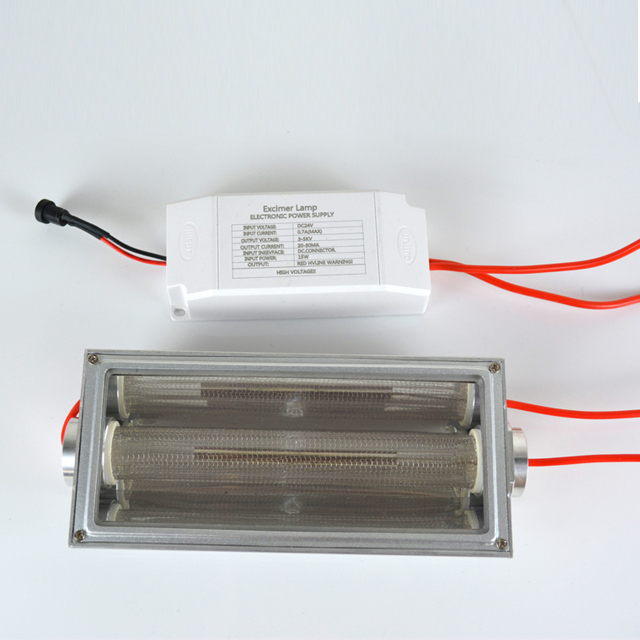

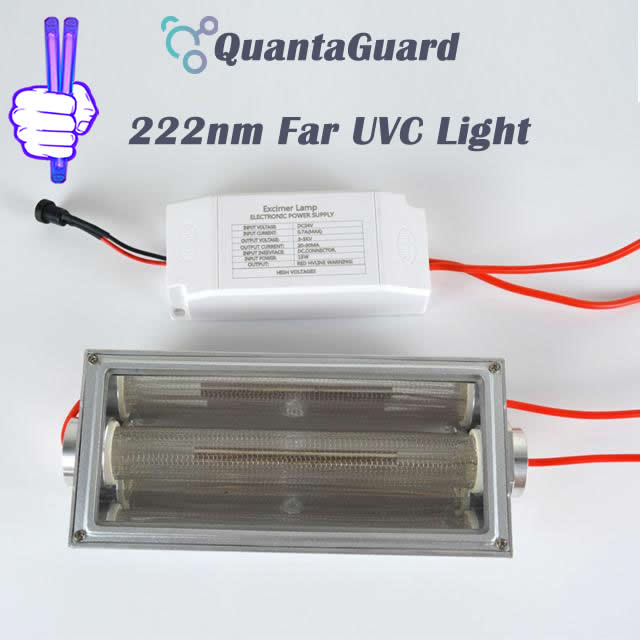

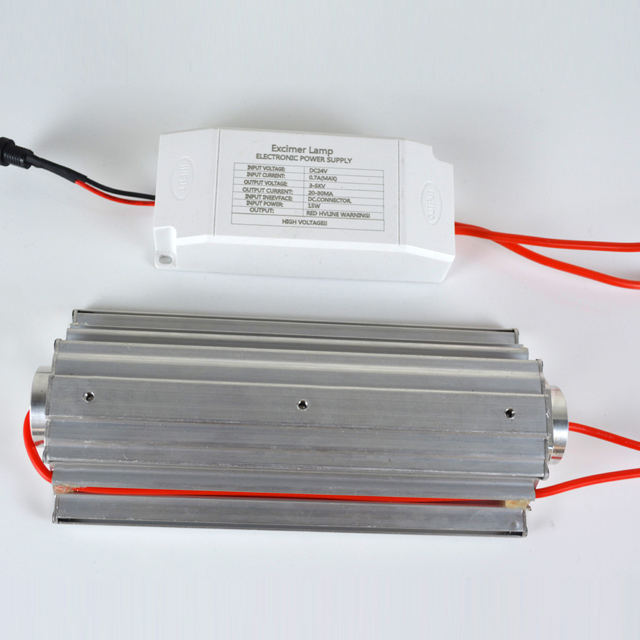

Buy this Excimer 15-watt 222nm Far-UVC light for sale with a 24V power supply and 222nm Far-UVC light Band-Pass Filter.

Certification: CE/FCC/RoHS


First UVC B-Series 222nm Far UVC Light Excimer Lamp B2-15W Module Far UVC Lamp Integration For Your Own Far-UV-C Light Devices.

These days, open-source hardware is the rage among venture capitalists, technologists, and hackers. The idea for our three QuantaModule kits is for anyone (OEMs) to adapt and integrate Far-UV into whatever you like.

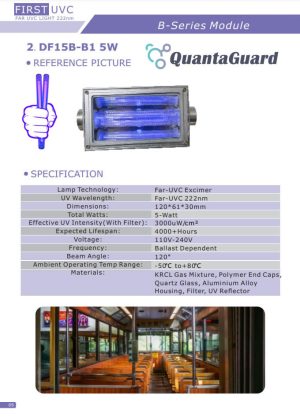

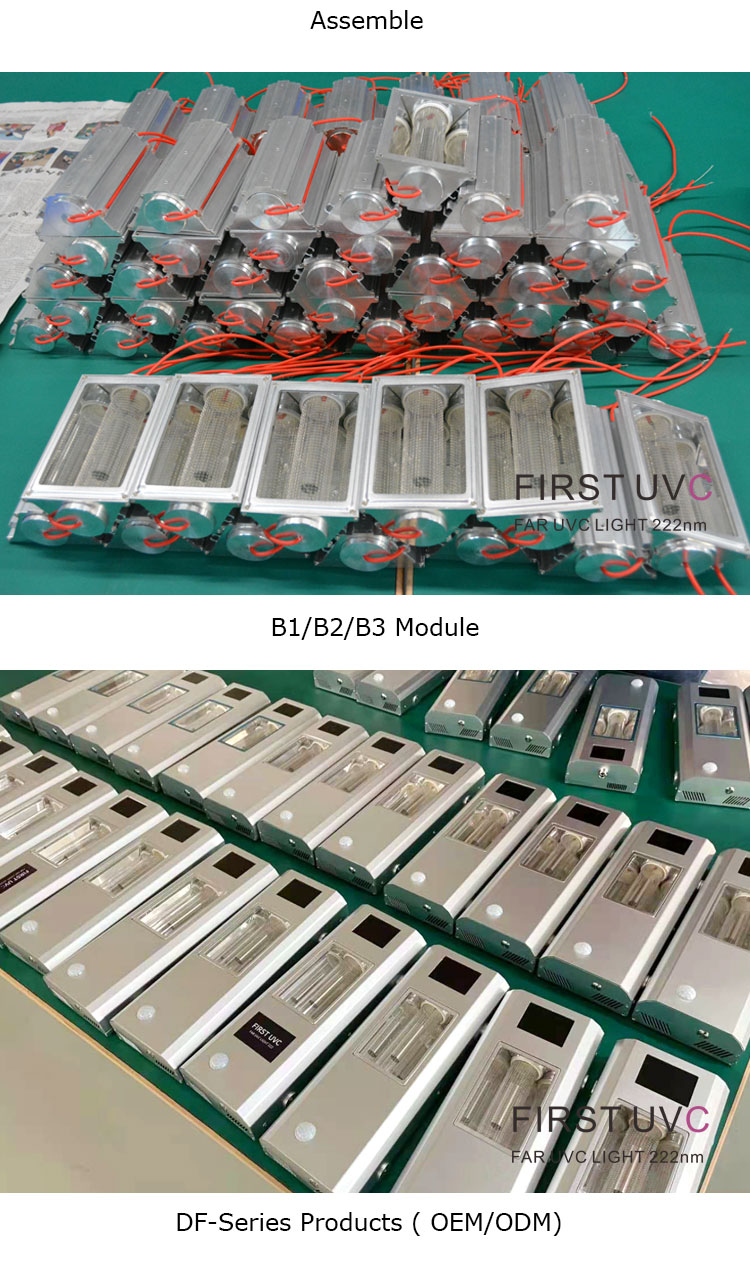

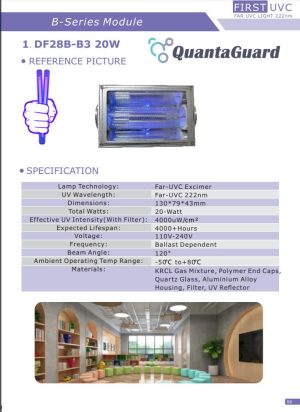

QuantaModule 222 nm Far-UVC Light Modules – B1-5W / B2-15W / B3-20W


Products using the FarUV Lighting Open Source DC 24V 15-Watt Far-UVC Light with 222nm Bandpass Flitter and Housing Module

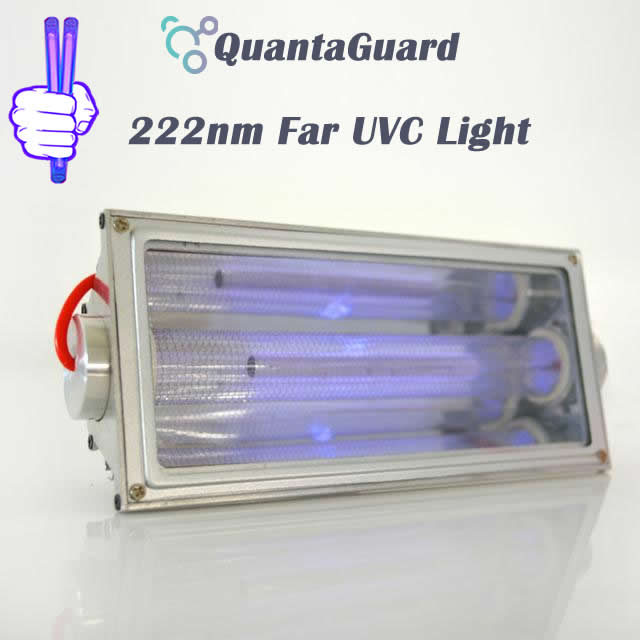

Buy QuantaGuard 15W 222nm FAR UVC Light Excimer Lamp 24V DC

QuantaLamp: Buy Replacement 15W Far-UV Bulb

Far UVC light manufacturers and Far UVC companies now have greater flexibility in designing products with the compact, preassembled Far-UVC QuantaModule 222-nm Far-UVC light for sale in 5 Watts15 Watts, and 20 Watts.  Far-UVC light manufacturers can create lights for cutting-edge AP-UVGI (Active Personnel Ultraviolet Germicidal Irradiation).  Far-UVC light cancer isn’t a concern because properly filtered far-UVC wavelengths can’t reach the DNA of living human cells.  Making it the first non-carcinogenic form of germicidal irradiation ever to exist responsible for creating a new branch of UVGI technology with AP prefix for Active Personnel, AP-UVGI using Far UVC light.




far-uvc-ap-uvgi-human-safe-uvcQuick Details
Input Voltage(V): DC 24V
Lamp Luminous Efficiency(lm/w):4000
Support Dimmer: No
Lighting solutions service: 222nm Far UVC Light Disinfection
Lifespan (hours):4000
Application:Home, Hotel, Office, Retail spaces,, Occupied areas, General areas, Restaurants, Hospital, Public Toilet, Commercial locations, Airport, School
Power Supply: DC
Portable: No
Light Source: Quartz Tube
wavelength(nm): 222
UV Optical Power(μW/cm2): 4000
Appplication Area(㎡): 30
Switch Mode: Manual Button
Rated Power: 15W
UV Wavelength: FAR-UVC LIGHT 222nm
Input Voltage: DC24V
Safety Requirement: Mercury Free
Material:Quartz Glass Filter, Aluminum Alloy, Sandblasting Oxidation (Silver)
Operating Temperature Range:-20℃ to +50℃
Warranty: 12 months
Life Span: 4000+
Certification: CE/FCC/RoHS
Beam Angle: 60 degree
UV lamp: 222nm
